50 Chapter 2
Quick Start: Learning How to Make Measurements
Learning to Make Reflection Measurements
■ Choose R+
j
X MKR to show the real and imaginary parts of the device impedance at the
marker. Also shown is the equivalent series inductance or capacitance (the series
resistance and reactance, in ohms).

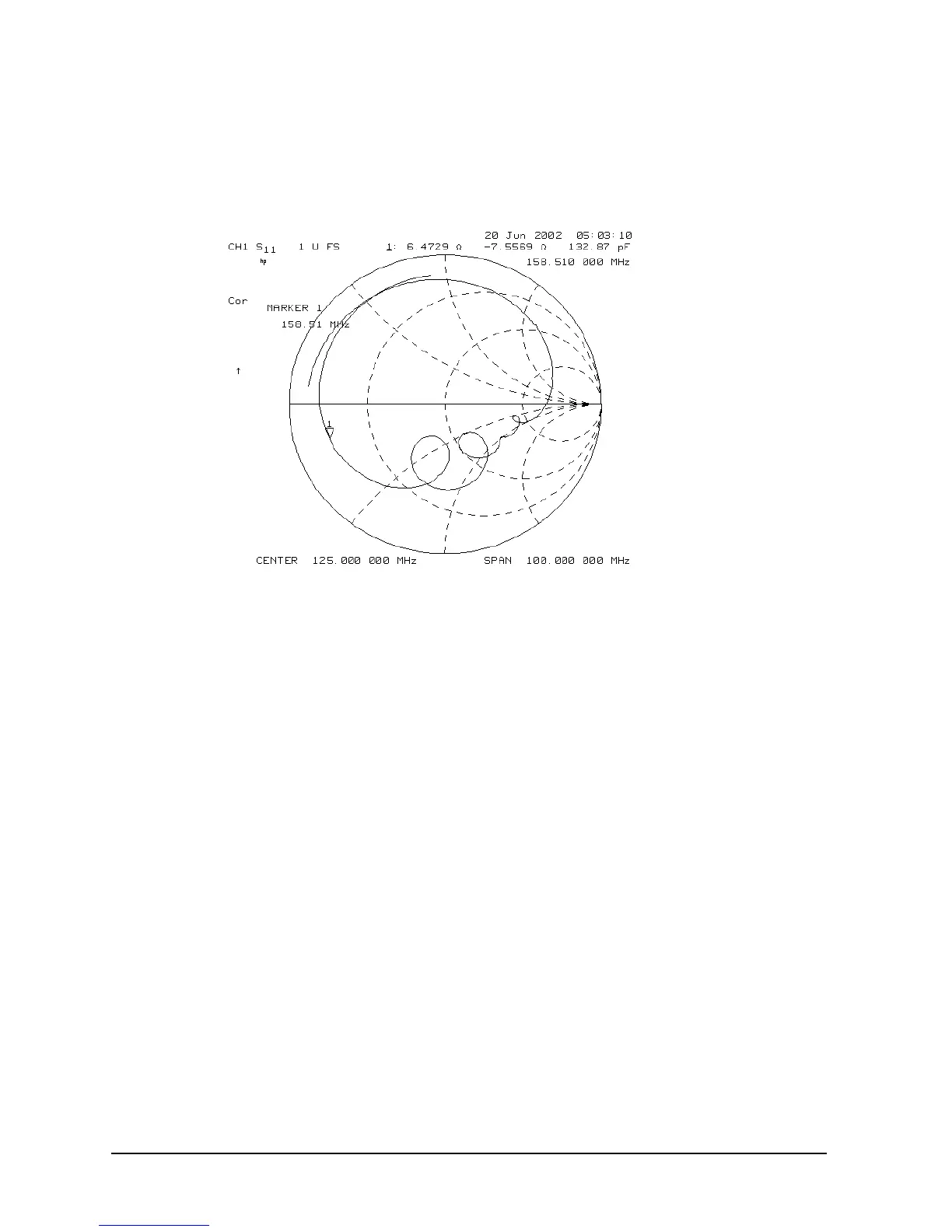

Figure 2-15Example Impedance Measurement Trace
