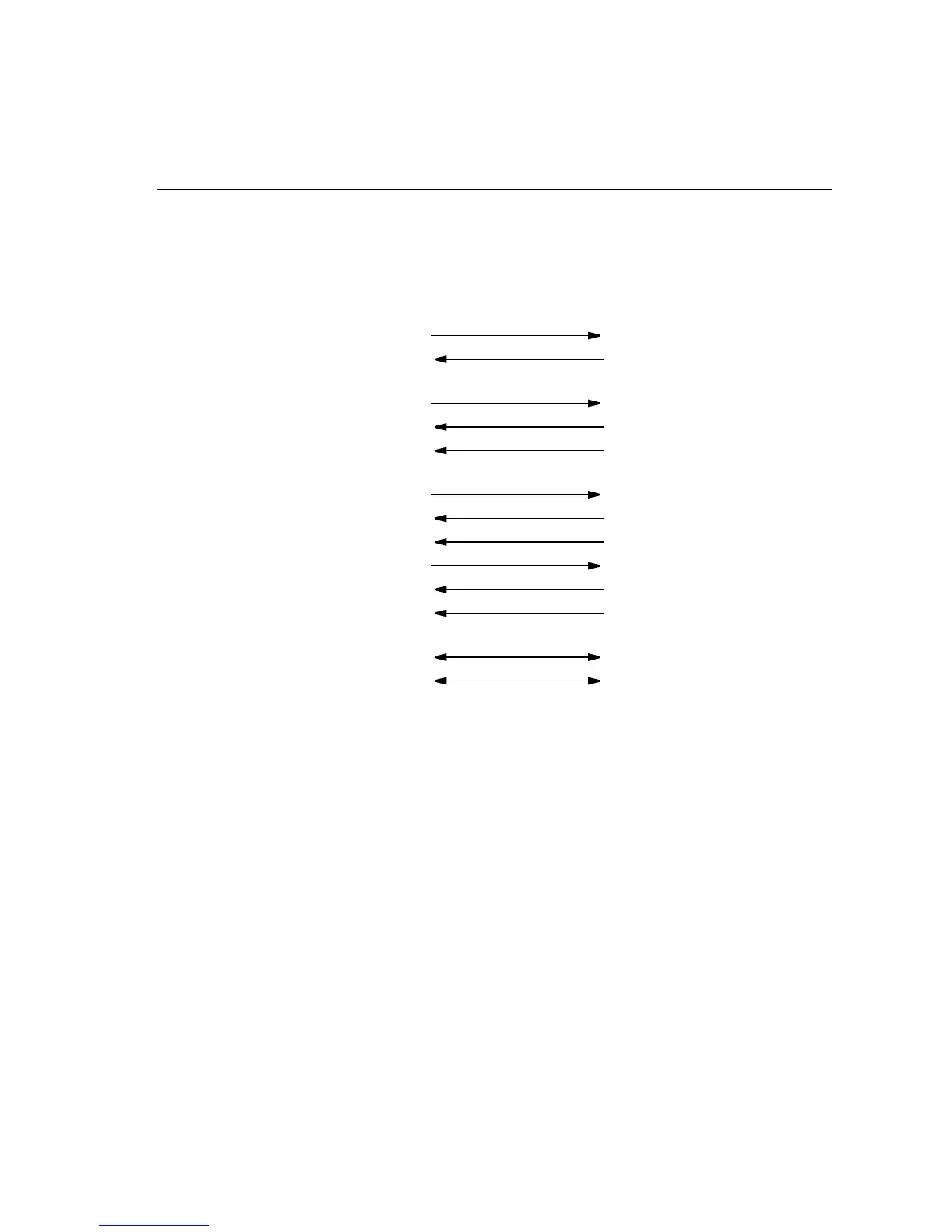

RS-232-D Cable

Part number 5061-4958

103 TX 2 2 TX

104 RX 3 3 RX

113 TSE/DTE 24 24 TSE/DTE

114 TSE/DCE 15 15 TSE/DCE

115 RSE 17 17 RSE

105 RTS 4 4 RTS

106 CTS 5 5 CTS

109 DCD 8 8 DCD

- 108 DTR 20 20 DTR

- 107 DSR 6 6 DSR

- 125 RI 22 22 RI

- 102 SG 7 7 SG

- 101 SHIELD 1 1 SHIELD

SUB D 25 PIN MALE

CONNECTOR

DTE-SIDE

SUB D 25 PIN MALE

CONNECTOR

DCE-SIDE
