Most Common Cabling Schemes
RS-232 connection

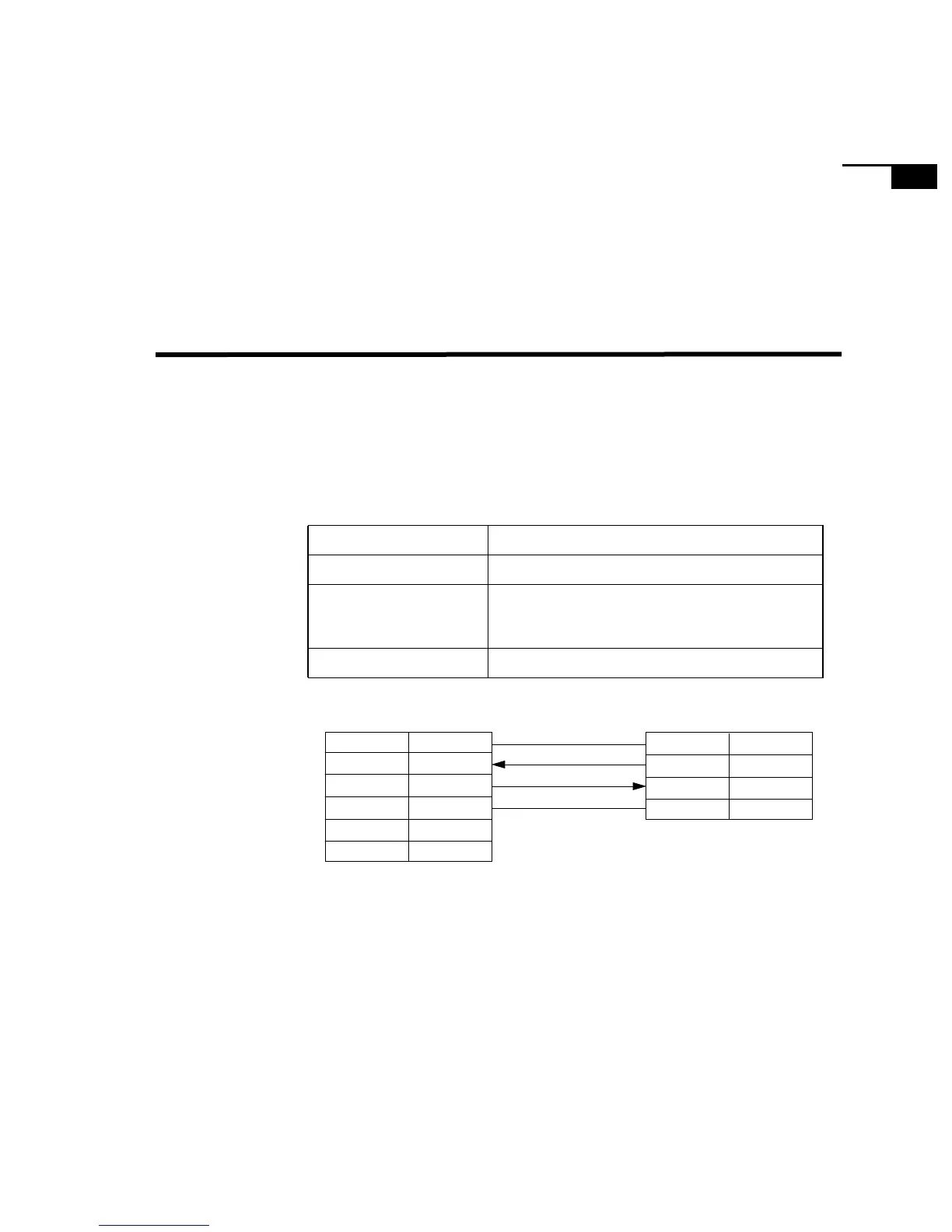

RS-232 DB25 Direct connection to HP terminals, HP Vectra PC’s and HP printers
This cabling scheme is recommended for connecting the following devices:
HP Terminals HP239xA, HP700/22/32/43/45/9x
HP Vectra C2401A, C2402A, C1010J, C1010T
HP Printers HP2227A, 28A, 76A, 77A, HP256x, HP293x,
HP2684A/P, 86A/D, HP33440A/F, 47A/F, 49A, 59A,
41063A, C1200A, C1202A
Existing HP cable HP40242Y
1 - PGND
2 - RD
3 - TD
7 - SGND
8 - RTS
22 - CTS
-
INPUT
OUTPUT
-
OUTPUT
INPUT
1 - Prot GND
2 - TD
3 - RD
7 - SGND
-
OUTPUT
INPUT
-
25-pin male connector to DTC 25-pin male connector to device
