HP A4500A - VMEbus Single Board Computer 744 Motherboard User Manual

65
RS-423 Connection
7

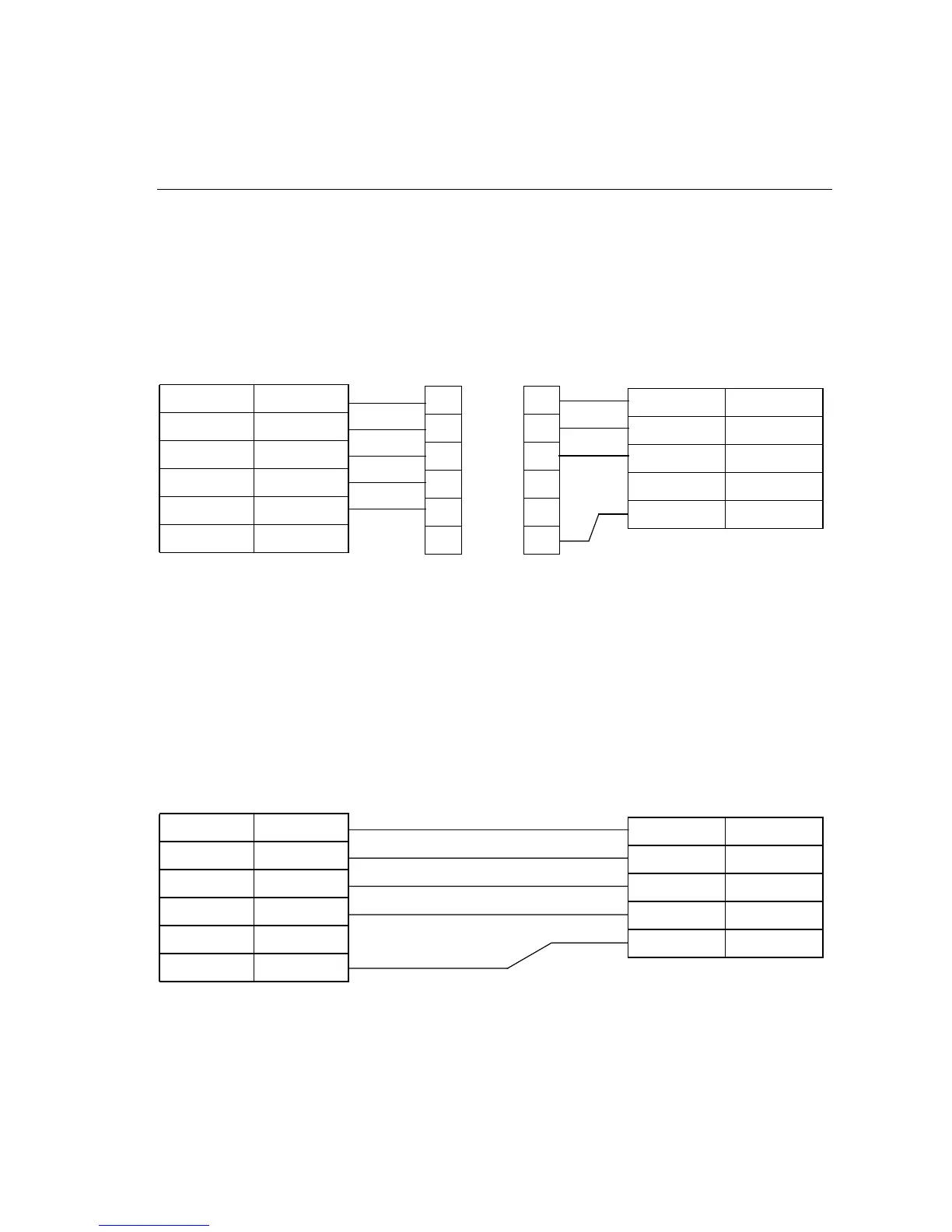

RS-423 RJ45 connection to RS-422 HP 700/32 terminal
This cabling scheme is recommended for connecting to HP 700/32 terminals via
RS-422 ports.
RS-423 DB25 direct connection to RS-422 HP 700/32 terminal
This cabling scheme is recommended for connecting to HP 700/32 terminals via
RS-422 ports.
RJ 45 male connector to DTC
1 - RXa INPUT
2 - RXb INPUT
3 - TXa OUTPUT
4 - CTS INPUT
5 - RTS OUTPUT
6 - TXb OUTPUT
6-pin male MMJ connector to
HP 700/32
2 - TX- OUTPUT
3 - TX+ OUTPUT
5 - RX- INPUT
1 - PGND -
4 - RX+ INPUT
11
22
33
44
55
66
RJ45 male
connector
RJ45 female
connector
RJ45 to MMJ
adaptor
RJ45 extension
cable
RJ 45 male connector to DTC
1 - RXa INPUT
2 - RXb INPUT
3 - TXa OUTPUT
4 - CTS INPUT
5 - RTS OUTPUT
6 - TXb OUTPUT
6-pin male MMJ connector to
HP 700/32
2 - TX- OUTPUT
3 - TX+ OUTPUT
5 - RX- INPUT
1 - PGND -
4 - RX+ INPUT
