A note on standards
8
RS-422/RS-423 compatibility
RS-422 and RS-423 are both compatible since they specify the same electrical
characteristics for the receiver. However, when connecting devices with different
baud rate and distance capabilities, the connection is limited to the baud rate and
distance supported by the device with the slower/shorter distance specification.

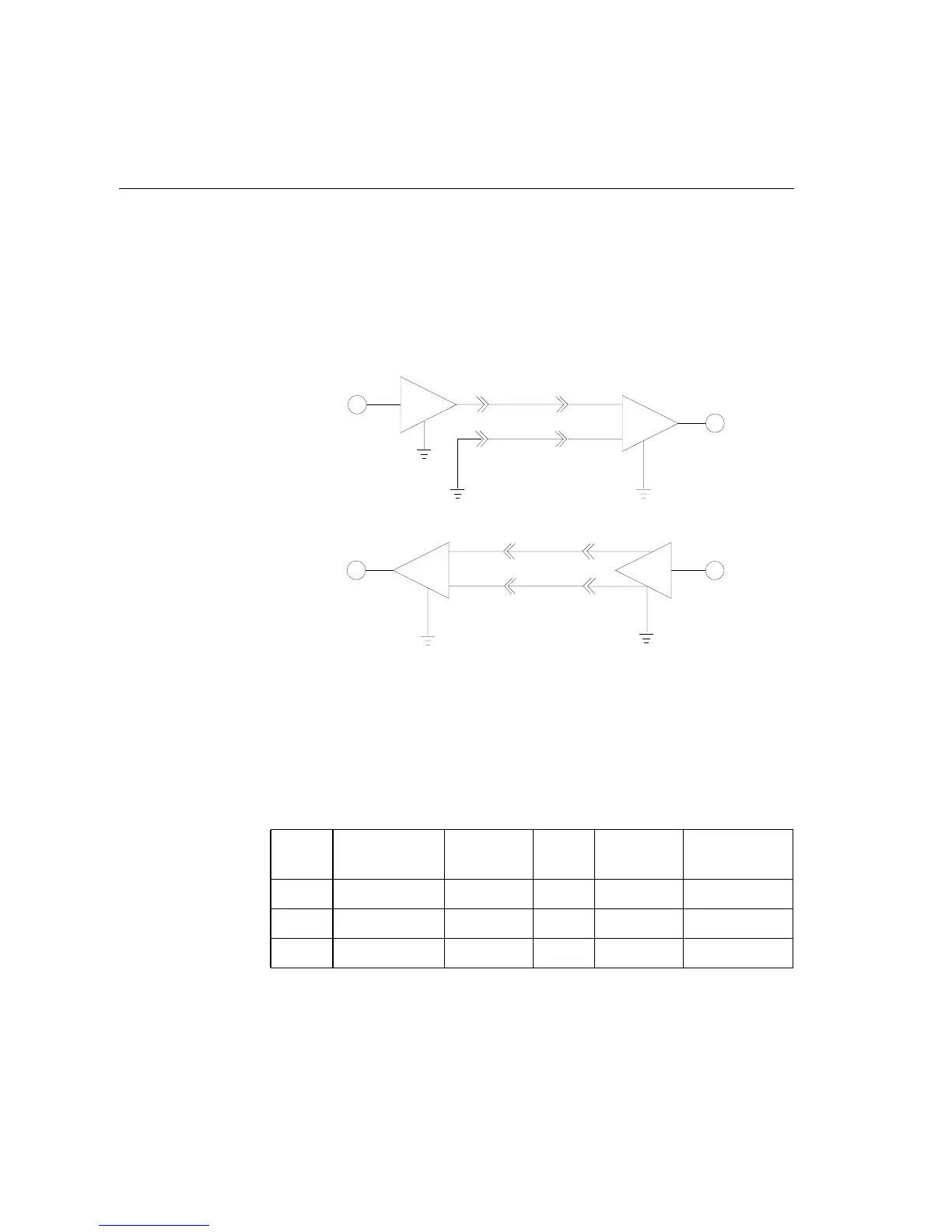

Terminal connections
Direct terminal connections can be made using either the RS-232, RS-423, or RS-
422 standards. The table below gives details for each. The distance, data rate, and
distance/data rate ratio given here are all maximum values. The conductors column
gives the number of conductors necessary for a full-duplex direct connection.
Data
In
Data
Out
RS-423
-
+
RS-422
Txa
Txb
Rxa
Rxb
Data
In
Data
Out
-
Txa
Txb
Rxa
Rxb
-
+
Transmission Conductors Dist Data Rate
Dist x Data
Rate
RS-232
Single-ended 3 50ft 20 kBaud 100kBaud-ft
RS-423
Single-ended 4 4000ft 100 kBaud 4 MBaud-ft
RS-422
Differential 4 4000ft 10 MBaud 400 MBaud-ft
