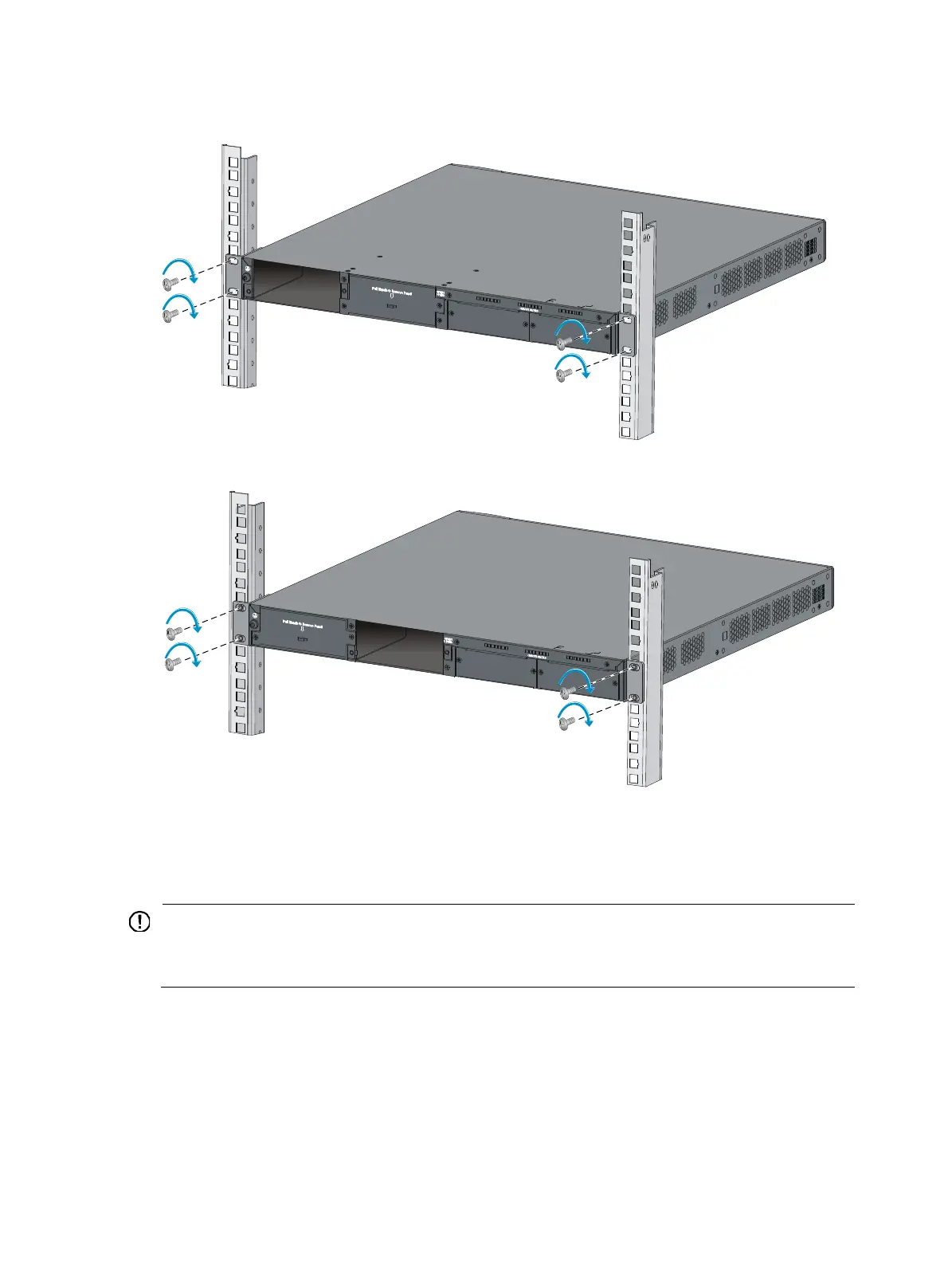

Figure 10 Mounting the switch in the rack

Mounting the switch on a workbench

IMPORTANT:

• Ensure good ventilation and 10 cm (3.9 in) of clearance around the chassis for heat dissipation.

• Avoid placing heavy objects on the switch.

To mount the switch on a workbench:

1. Check that the workbench is sturdy and well grounded.

2. Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth.

3. Attach the rubber feet to the four round holes in the chassis bottom.

4. Place the switch with upside up on the workbench.
