HP A5500 HI Series User Manual

24

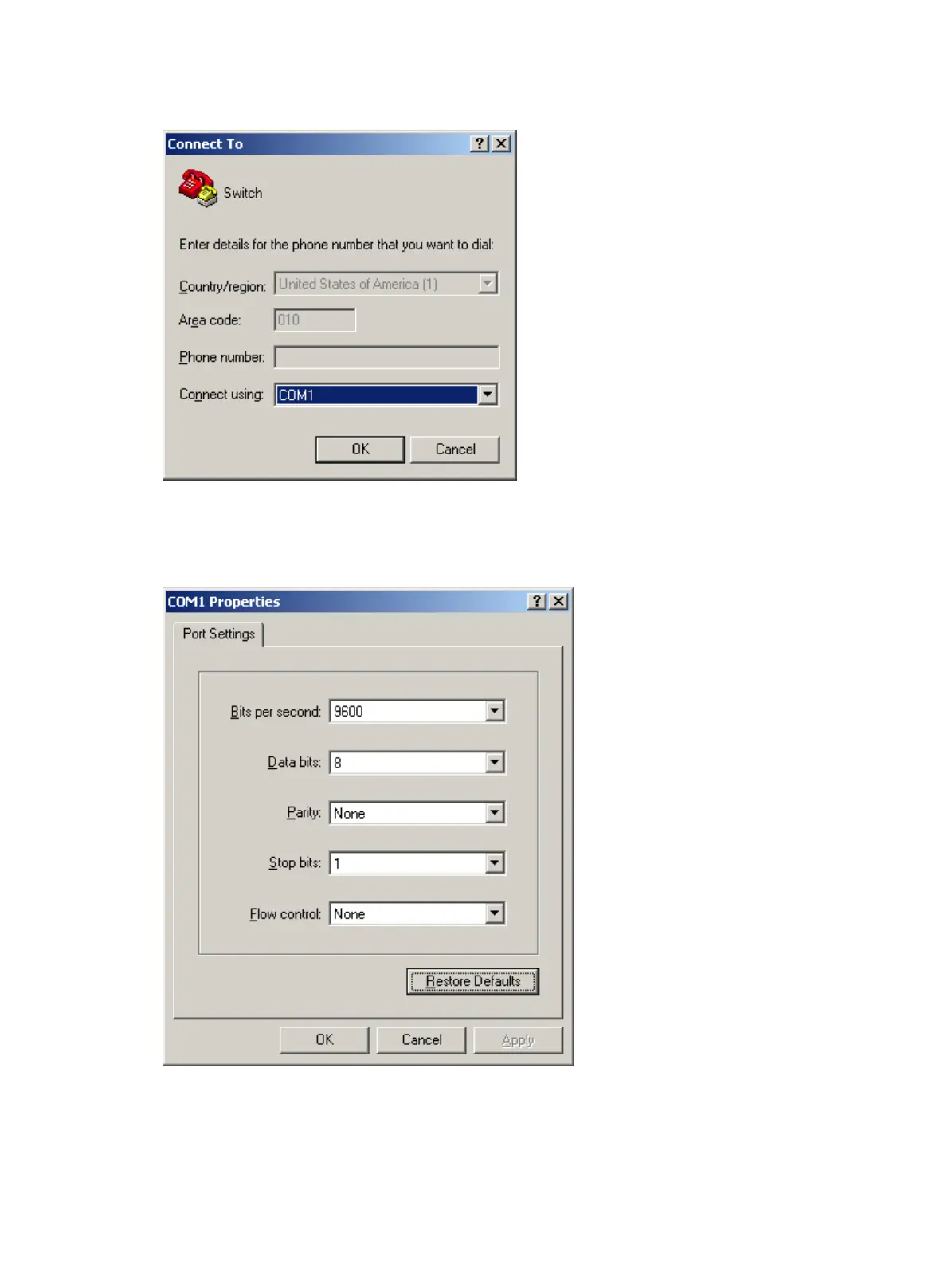

Figure 29 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,
and click OK.
Figure 30 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window.

HP A5500 HI Series Specifications

General

Switching Capacity	336 Gbps
Forwarding Rate	252 Mpps
QoS	Yes
SFP+ Ports	4
Layer Support	Layer 2/3
Stacking	Yes
Management	CLI, Web, SNMP
MAC Address Table Size	32, 000
Routing Protocol	OSPF, RIP, BGP, IS-IS
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (noncondensing)
Ports	48
10/100/1000Base-T Ports	48
Jumbo Frames	9216 bytes
Dimensions	440 x 430 x 44 mm
