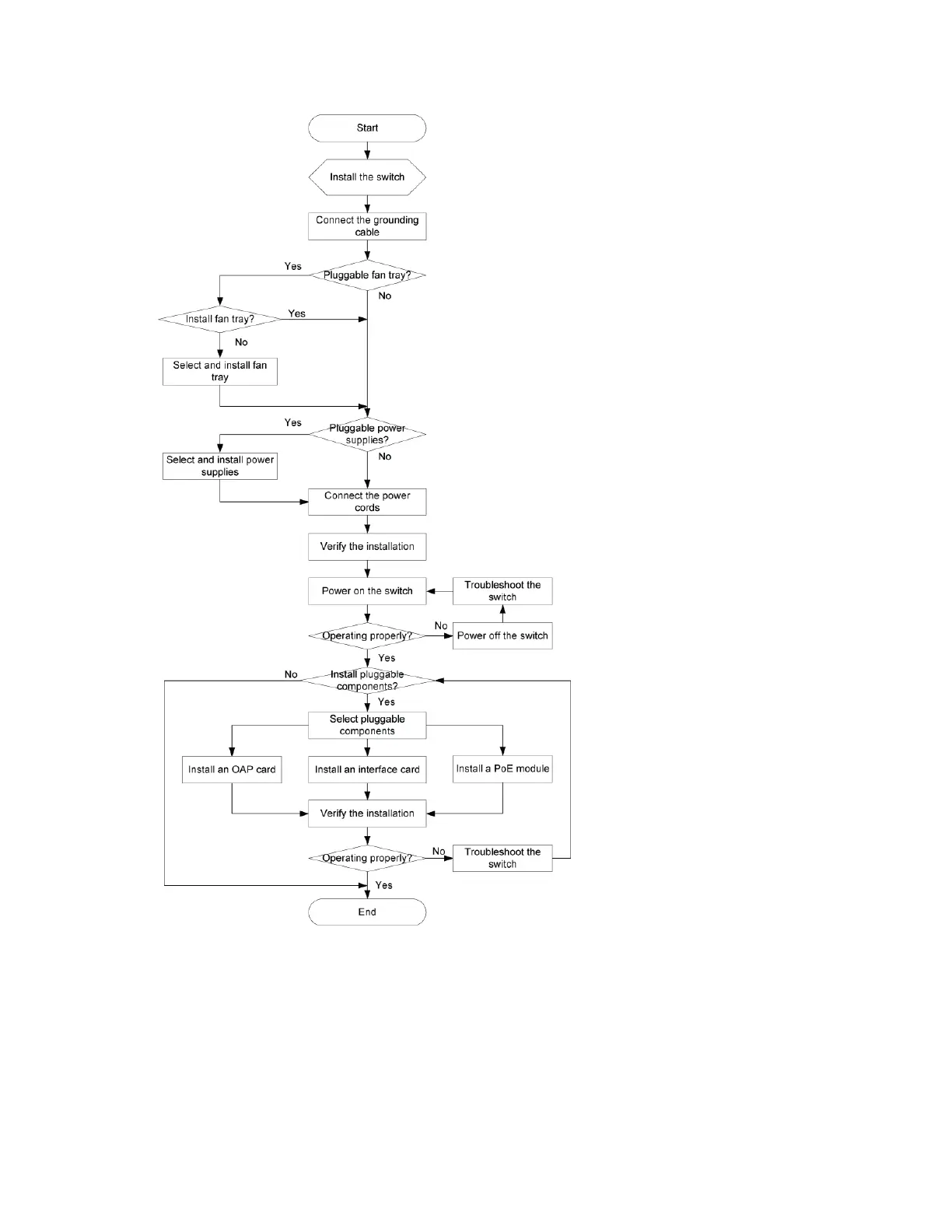

Figure 1
Hardwa
re installation flow
Confirming insta
llation preparations
Bef
o
r
e
y
ou
ins
tall the sw
itch
,
make sure:
Y
ou
hav
e
read
―Pr
eparing
f
or
i
nstallation
‖
caref
ully
and
the
installation
site
meets
all
the
req
uireme
nts.
A 1
9-inch rac
k is read
y for us
e. F
or ho
w to install a r
ack
, see the rack ins
tallation guide
.
10
12
Table of Contents
Table of Contents
3
Preparing for Installation
7
Safety Recommendations
8
Installation Site Requirements
8
Rack-Mounting Requirements
9
Installation Tools
9
Installing the Switch
10
Confirming Installation Preparations
11
Installing the Switch in a 19-Inch Rack
12
Mounting Bracket and Cable Management Bracket Kits
12
Rack Mounting Rail Kit
13
Rack-Mounting Procedure
13
Identifying the Mounting Position
14
Attaching the Mounting Brackets, Chassis Rails, and Grounding Cable (A5800AF-48G/A5820AF-24XG)
15
Attaching the Mounting Brackets to the Chassis
15
24Xg)
15
Rack-Mounting an A5800AF-48G/A5820AF-24XG Switch
19
Rack-Mounting an A5800/A5820X Switch Except the A5800AF-48G/A5820AF-24XG
21
Mounting the Switch on a Workbench
23
Grounding the Switch
23
Grounding the Switch with a Grounding Strip
23
Grounding the Switch by Using the AC Power Cord
26
Installing/Removing a Fan Tray
27
Installing a Fan Tray
27
Removing a Fan Tray
28
Installing/Removing a Power Supply
29
A5800Af-48G/A5820Af-24Xg
29
Slot)/All the A5820X Switches Except the A5820AF-24XG
32
Connecting the Power Cord
34
Connecting an AC Power Cord to the Switch
35
Connecting the Switch to a -54 VDC Output RPS
35
Connecting the Switch to a 12 VDC Output RPS
36
Connecting the PSR150-A
37
Connecting the PSR150-D to a -48 VDC Power Source
37
Connecting the PSR150-D to a -54 VDC Output RPS
38
Connecting the PSR300-12A
39
Connecting the PSR300-12D1 to a -48 VDC Power Source
39
Connecting the PSR300-12D1 to a -54 VDC Output RPS
40
Connecting the PSR750-A
41
Connecting the 650W AC Power Supply
41
Connecting the 650W DC Power Supply
42
Installing/Removing an Interface Card
42
Installing an Interface Card
42
Removing an Interface Card
44
Installing/Removing an OAP Card
44
Installing an OAP Card in the OAP Card Slot
45
Removing the Card in the OAP Card Slot
46
Installing an OAP Card in an Expansion Interface Card Slot
46
Removing the OAP Card in an Expansion Interface Card Slot
47
Installing/Removing a Poe Module
47
Installing a Poe Module
47
Removing the Poe Module
48
Verifying the Installation
48
Powering on the Switch for the First Time
49
Setting up the Configuration Environment
49
Connecting the Console Cable
49
Console Cable
49
Connection Procedure
50
Setting Terminal Parameters
50
Powering on the Switch
54
Verification before Power-On
54
Powering on the Switch
55
Changing the Startup Mode
57
Setting up an IRF Fabric
59
IRF Fabric Setup Flowchart
59
Planning IRF Fabric Setup
60
Planning IRF Fabric Size and the Installation Site
60
Identifying the Master Switch and Planning IRF Member Ids
61
Planning IRF Topology and Connections
61
Identifying Physical IRF Ports on the Member Switches
62
Planning the Cabling Scheme
63
Configuring Basic IRF Settings
66
Connecting the Physical IRF Ports
67
Verifying the IRF Fabric Configuration
67
Maintenance and Troubleshooting
68
Password Loss
68
Console Login Password Loss
68
Boot ROM Password Loss
68
Power Supply Failure
68
Fixed Power Supply Failure
68
Hot Swappable Power Supply Failure
70
OAP Card Failure
71
Failure of the OAP Card in the OAP Card Slot
71
Failure of the OAP Card in an Expansion Interface Card Slot
72
Hot Swappable Poe Module Failure
72
Fan Failure
72
Fixed Fan Failure
73
Hot Swappable Fan Tray Failure
73
Configuration Terminal Problems
73
Support and Other Resources
75
Contacting HP
75
Subscription Service
75
Related Information
75
Documents
75
Websites
75
Conventions
76
Appendix A Technical Specifications
78
Physical Specifications
78
Chassis Dimensions and Weights
78
Ports and Slots (A5800 Switches)
79
Ports and Slots (A5820X Switches)
80
A5800-48G-Poe+ (2 Slots)/A5800-48G-Poe+ TAA (2 Slots) Panel Views
81
A5800-48G (1 Slot)/A5800-48G TAA (1 Slot) Panel Views
83
A5800-48G-Poe+ (1 Slot)/A5800-48G-Poe+ TAA (1 Slot) Panel Views
85
A5800AF-48G Panel Views
86
A5800-24G/A5800-24G TAA Panel Views
87
A5800-24G-Poe+/A5800-24G-Poe+Taa Panel Views
88
A5800-24G-SFP (1 Slot)/A5800-24G-SFP TAA (1 Slot) Panel Views
89
A5820AF-24XG Panel Views
90
A5820X-24XG-SFP+/A5820X-24XG-SFP+ TAA Panel Views
91
A5820X-14XG-SFP+ (2 Slots)/A5820X-14XG-SFP+ TAA (2 Slots) Panel Views
92
Environmental Specifications
93
Power Specifications
94
AC-Input Power Specifications
94
DC-Input Power Specifications
95
RPS DC-Input Power Specifications
96
Appendix B Frus and Compatibility Matrixes
97
Hardware Compatibility Matrixes
97
Power Supply Compatibility Matrix
97
Fan Tray Compatibility Matrix
98
Interface Card Compatibility Matrix
99
Poe Module Compatibility Matrix (Only for the A5800 Switches)
100
OAP Card Compatibility Matrix
100
RPS Compatibility Matrix
102
Hot Swappable Power Supplies
103
Hot Swappable Fan Trays
104
Interface Cards
105
OAP Cards
105
Hot Swappable Poe Modules
105
Appendix C Ports and Leds
106
Ports
106
Console Port
106
Management Ethernet Port
106
USB Port
106
10/100/1000Base-T Ethernet Port
107
100/1000Base-X SFP Port
107
SFP+ Port
108
Leds
110
System Status LED
111
Power Supply Status LED
111
RPS Status LED
112
Port Mode LED
112
Seven-Segment LED
112
10/100/1000Base-T Ethernet Port LED
114
100/1000Base-X SFP Port LED
114
SFP+ Port LED
115
Management Ethernet Port Leds
115
OAP Card Status LED
116
Poe Module Status LED
116
Interface Card Status LED
116
Appendix D Cooling System
117
A5800-48G-Poe+ (2 Slots)/A5800-48G-Poe+ TAA (2 Slots)
117
A5800-48G (1 Slot)/A5800-48G TAA (1 Slot)
119
A5800-48G-Poe+ (1 Slot)/A5800-48G-Poe+ TAA (1 Slot)
120
A5800Af-48G
121
A5800-24G/A5800-24G Taa
123
A5800-24G-Poe+/A5800-24G-Poe+Taa
124
A5800-24G-SFP (1 Slot)/A5800-24G-SFP TAA (1 Slot)
125
A5820Af-24Xg
126
A5820X-24Xg-Sfp+/A5820X-24Xg-Sfp+ Taa
128
A5820X-14XG-SFP+ (2 Slots)/A5820X-14XG-SFP+ TAA (2 Slots)
129
Index
132
