Figure 96 Airflow through the chassis
(1) Left-side inlet air vents
(2) Right-side outlet air vents
A5800-48G-PoE+ (1 slot)/A5800-48G-PoE+ TAA
(1 slot)

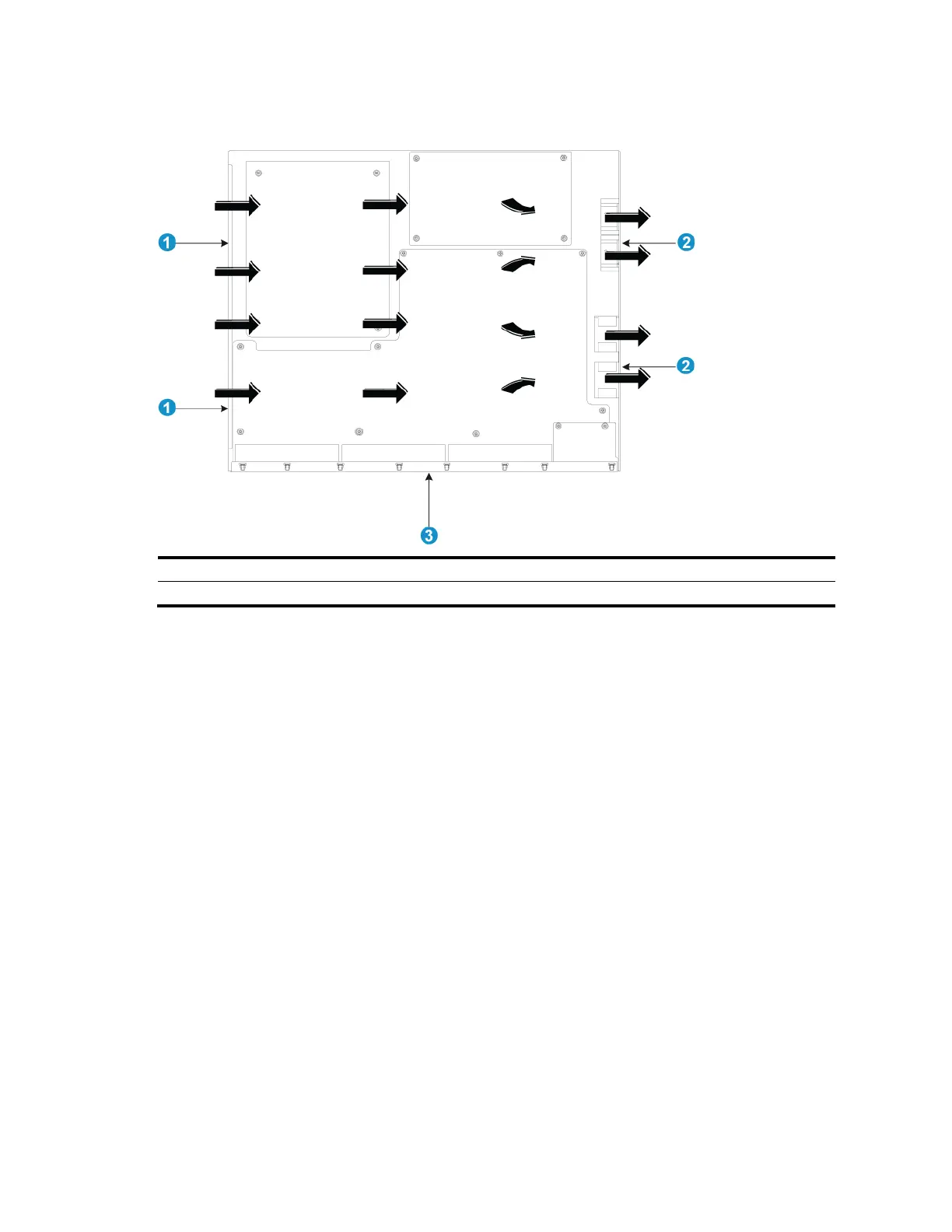

Figure 97 shows the airflow design for the A5800-48G-PoE+ (1 slot) and A5800-48G-PoE+ TAA (1 slot)
switches. Cool air flows in from the left side of the chassis, circulates through the chassis and the interface
card, and exhausts out the right side of the chassis.
