Connecting the PSR750-A
To connect the PSR750-A:
1. Check that the AC power supply is off.
2. Connect one end of the AC power cord supplied with the power supply to the power receptacle on
the power supply (see Figure 45).
3. Connect the other end of the power cord to an AC power outlet.

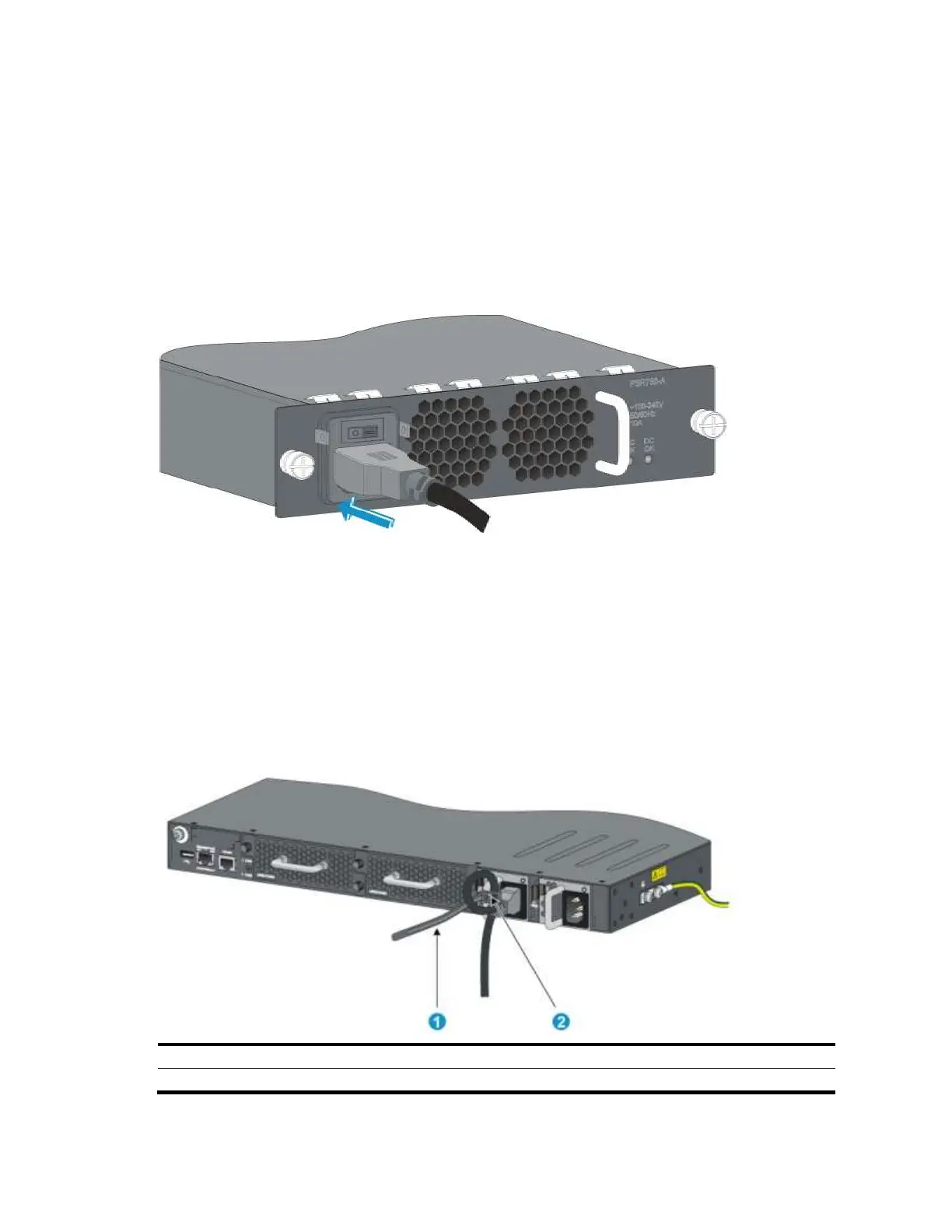

Figure 45 Connecting the PSR750-A
Connecting the 650W AC power supply
To connect the 650W AC power supply:
1. Insert the female connector of the AC power cord supplied with the power supply into the power
receptacle on the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 46.
3. Connect the other end of the power cord to an AC power outlet.
Figure 46 Connecting the 650W AC power supply
(2) Tighten the cable tie to secure the power cord to the handle of the power supply
