HP A5820X Series User Manual

83

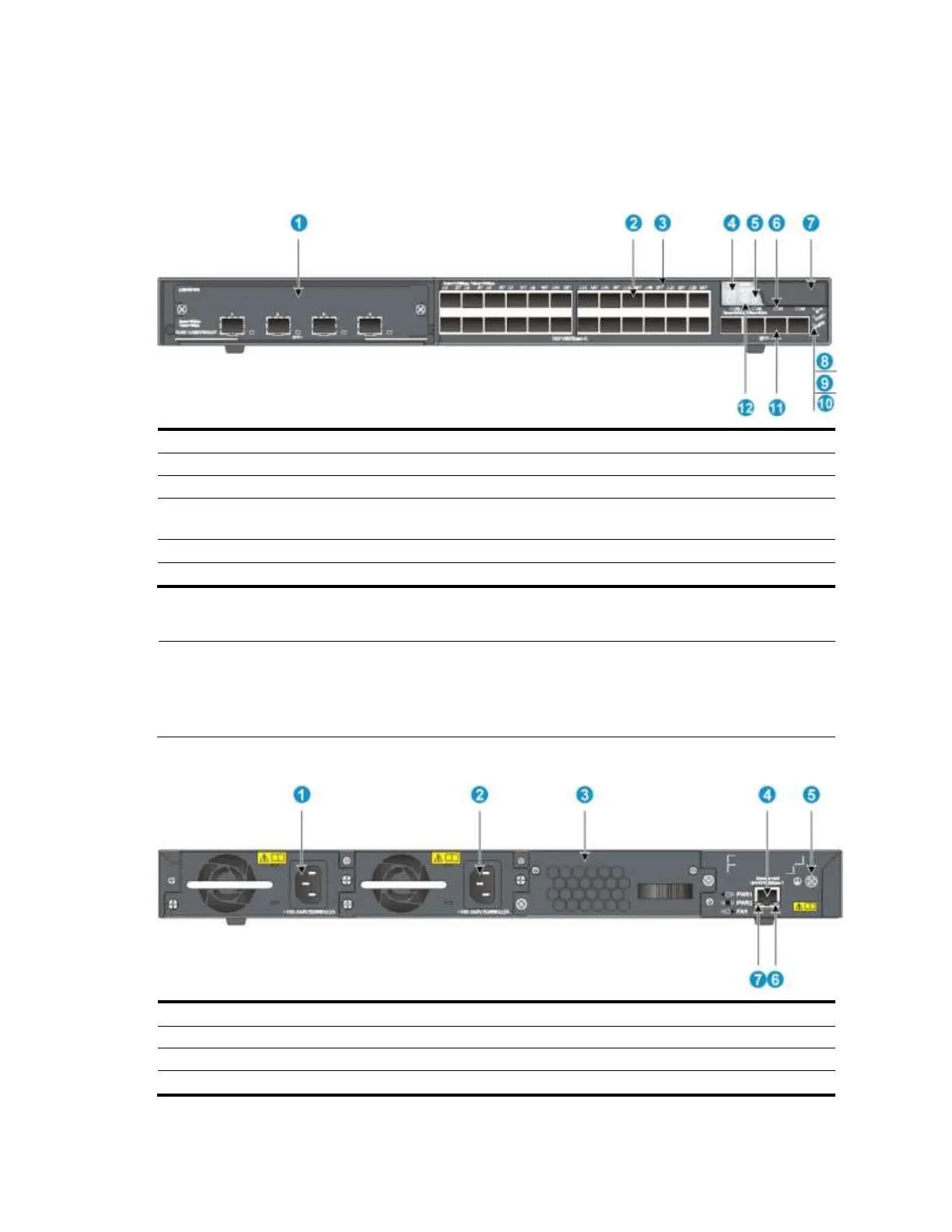

A5800-24G-SFP (1 slot)/A5800-24G-SFP TAA (1
slot) panel views
Figure 84 Front panel
(1) Interface card slot
(2) 100/1000Base-X SFP port
(3) 100/1000Base-X SFP port LED
(4) Seven-segment LED
(5) Port mode LED
(6) SFP+ port LED
(7) Logo plate (A console port and a USB port are
under this logo plate)
(8) System status LED (SYS)
(9) Power supply 1 status LED (PWR1)
(10) Power supply 2 status LED (PWR2)
(11) SFP+ port
(12) Port LED mode switching button
To use the console port and USB port, open the logo plate, as shown in Figure 72 and Figure 73.
NOTE:
The A5800-24G-SFP (1 slot) and A5800-24G-SFP TAA (1 slot) switches come with the expansion
interface card slot covered by a filler panel. In this figure, an LSW1SP4P0 interface card is installed in
the slot.
Figure 85 Rear panel
(1) Power supply slot 1
(2) Power supply slot 2
(3) Hot swappable fan tray
(4) Management Ethernet port
(5) Grounding screw
(6) ACT LED for the management Ethernet port
(7) LINK LED for the management Ethernet port
