HP A5820X Series User Manual

75
A5800-48G-PoE+ (2 slots)/A5800-48G-PoE+ TAA
(2 slots) panel views

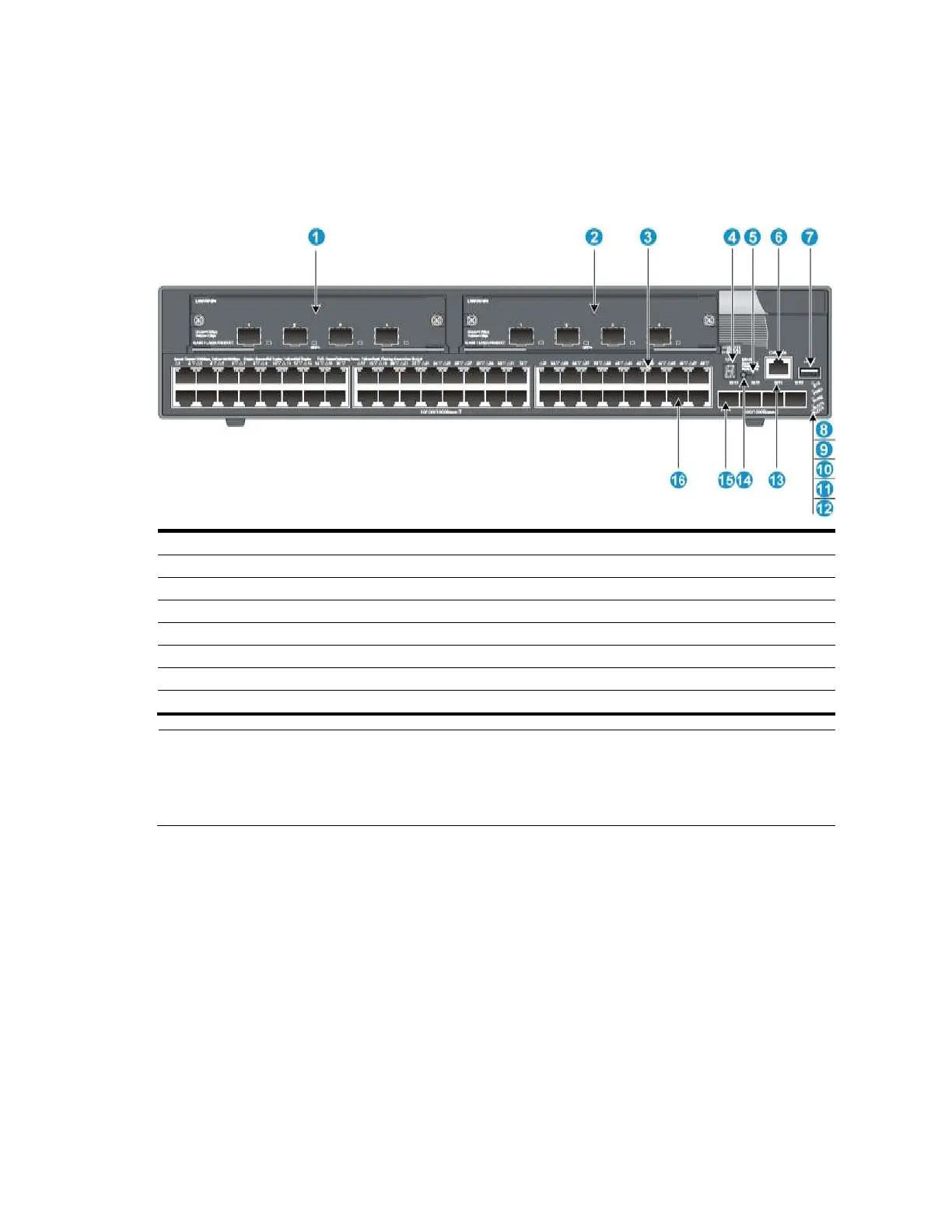

Figure 69 Front panel
(1) Expansion interface card slot 1
(2) Expansion interface card slot 2
(3) 10/100/1000Base-T Ethernet port LED
(4) Seven-segment LED
(5) Port mode LED
(6) Console port
(7) USB port
(8) System status LED (SYS)
(9) Power supply 1 status LED (PWR1)
(10) Power supply 2 status LED (PWR2)
(11) OAP card status LED (SLOT3)
(12) PoE module status LED (SLOT4)
(13) 100/1000Base-X SFP port LED
(14) Port LED mode switching button
(15) 100/1000Base-X SFP port
(16) 10/100/1000Base-T auto-sensing Ethernet port
NOTE:
The A5800-48G-PoE+ (2 slots) and A5800-48G-PoE+ TAA (2 slots) switches come with the two
expansion interface card slots covered by filler panels. In this figure, two LSW1SP4P0 interface cards
are installed in the slots.
