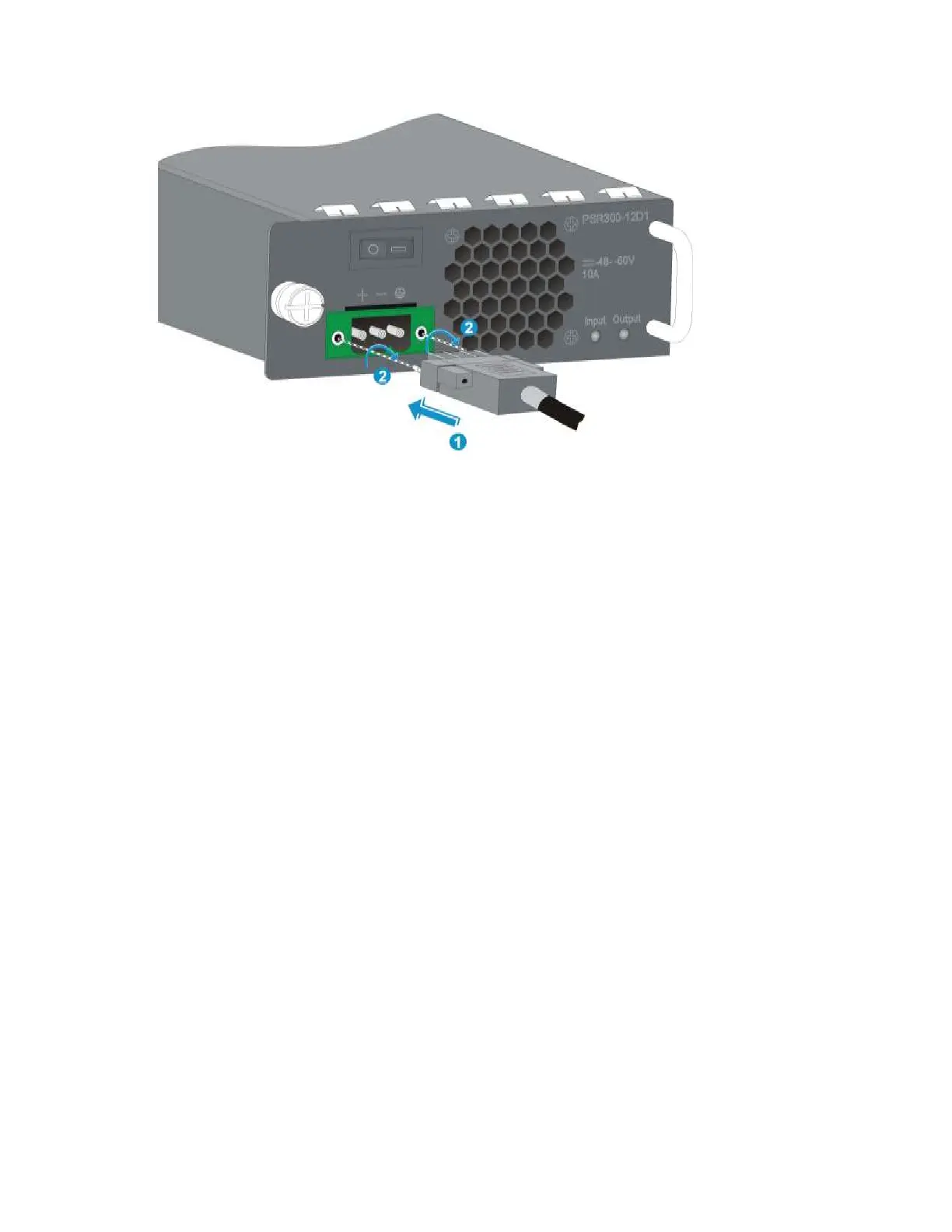

Figure 44 Connecting the PSR300-12D1
Connecting the PSR300-12D1 to a –54 VDC output RPS
To connect the PSR300-12D1 to a –54 VDC output RPS:
1. Unpack the RPS power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle (see callout
1 in Figure 44).
2. The receptacle is foolproof. If you cannot insert the plug into the receptacle, re-orient the plug rather
than use excessive force to push it in.
3. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the power
receptacle (see callout 2 in Figure 44).
4. Connect the other end of the power cord to the RPS.
