HP AF600A - Server Console Switch User Manual

Local port operation 34
2.

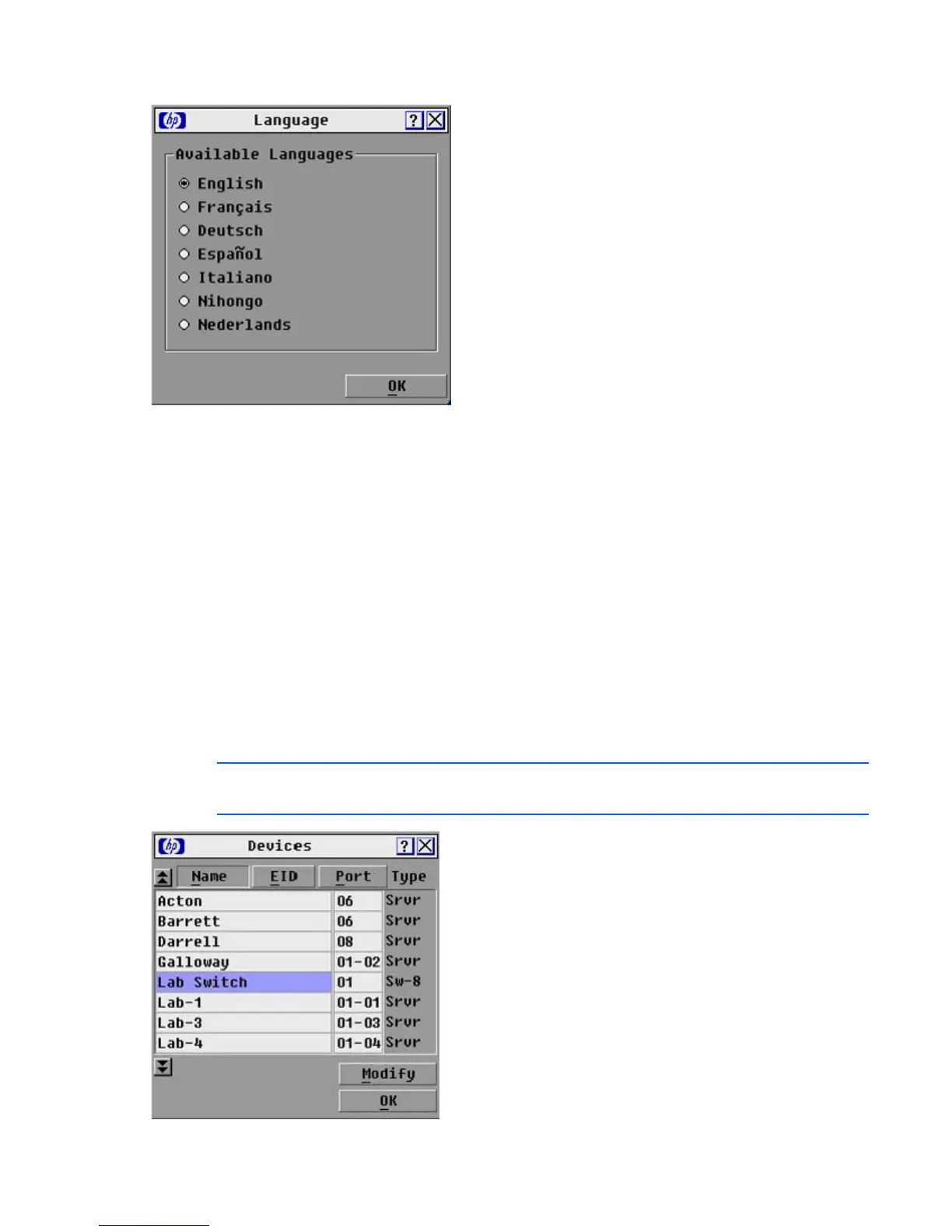

Click Language. The Language window appears.
3. Select the desired language.
4. Choose one of the following options:
o Click OK to change the OSD interface language and return to the Setup window.
o Click X or press the Esc key to exit without changing the keyboard language.
Assigning device types
While the console switch automatically discovers cascaded Compaq Server Console Switches attached to
your unit, you must specify the number of ports on the cascade Compaq Server Console Switch through
the Devices dialog box ("Accessing the Devices dialog box" on page 34).
Accessing the Devices dialog box
From the Main dialog box ("Accessing the Main dialog box" on page 17), click Setup>Devices. The
Devices dialog box appears.
NOTE: The Modify button is only available if a configurable Compaq Server Console Switch is
selected.

HP AF600A - Server Console Switch Specifications

General

Brand	HP
Model	AF600A - Server Console Switch
Category	Switch
Language	English
