HP Apollo 4510 Gen10 User Manual

Cabling
I/O module option cabling
HPE Smart Array E208i-p SR Gen10 Controller cabling
The HPE Apollo 4510 Gen10 Chassis supports single and dual installation for the HPE Smart Array
E208i-p SR Gen10 Controller.
Hewlett Packard Enterprise recommends installing a single controller board in slot 2. Installing a controller
board in slot 1 requires that the second processor is installed in the server.
• Single-board option

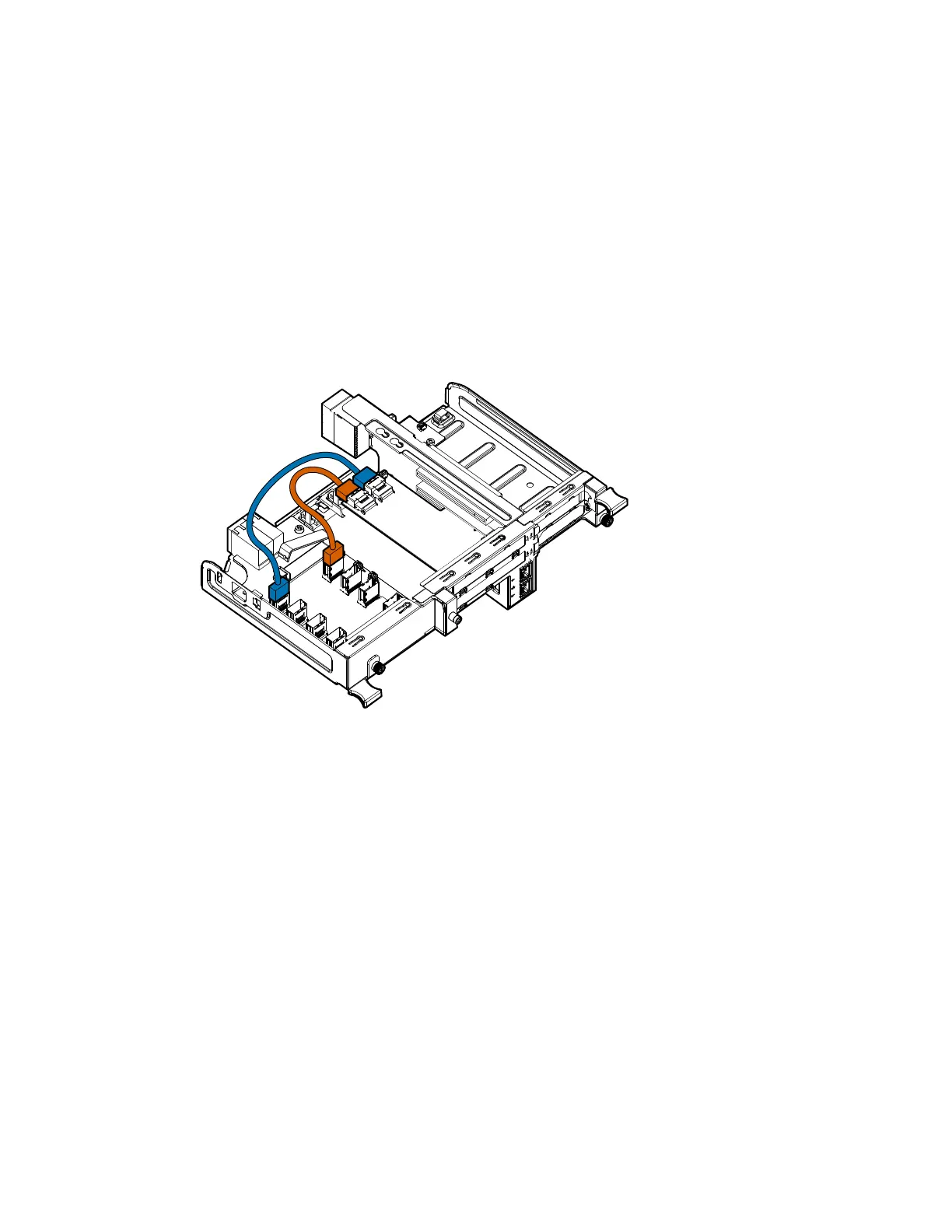

Figure 1: I/O module data and power cabling with a single P208i-p board
• Dual-board option
64 Cabling
