3–2 HP workstation c8000 — Getting Started
New Component Setup
To install or replace components:
1. If you have already connected and turned on the system, turn off
the system and disconnect all cables and power cords.
2. Check the materials list that shipped with your system to verify
that you have all of the components. Remove the main system
access panel:
a. Unlock the panel if it is locked
1.
b. Pull out on the latch to release it
2.
c. Rotate the panel
3 and lift it off 4.
3. Remove the front system access panel:
a. Press the two clips on the inside of the case to release the
front panel
5.
b. Rotate the panel and lift it off
6.

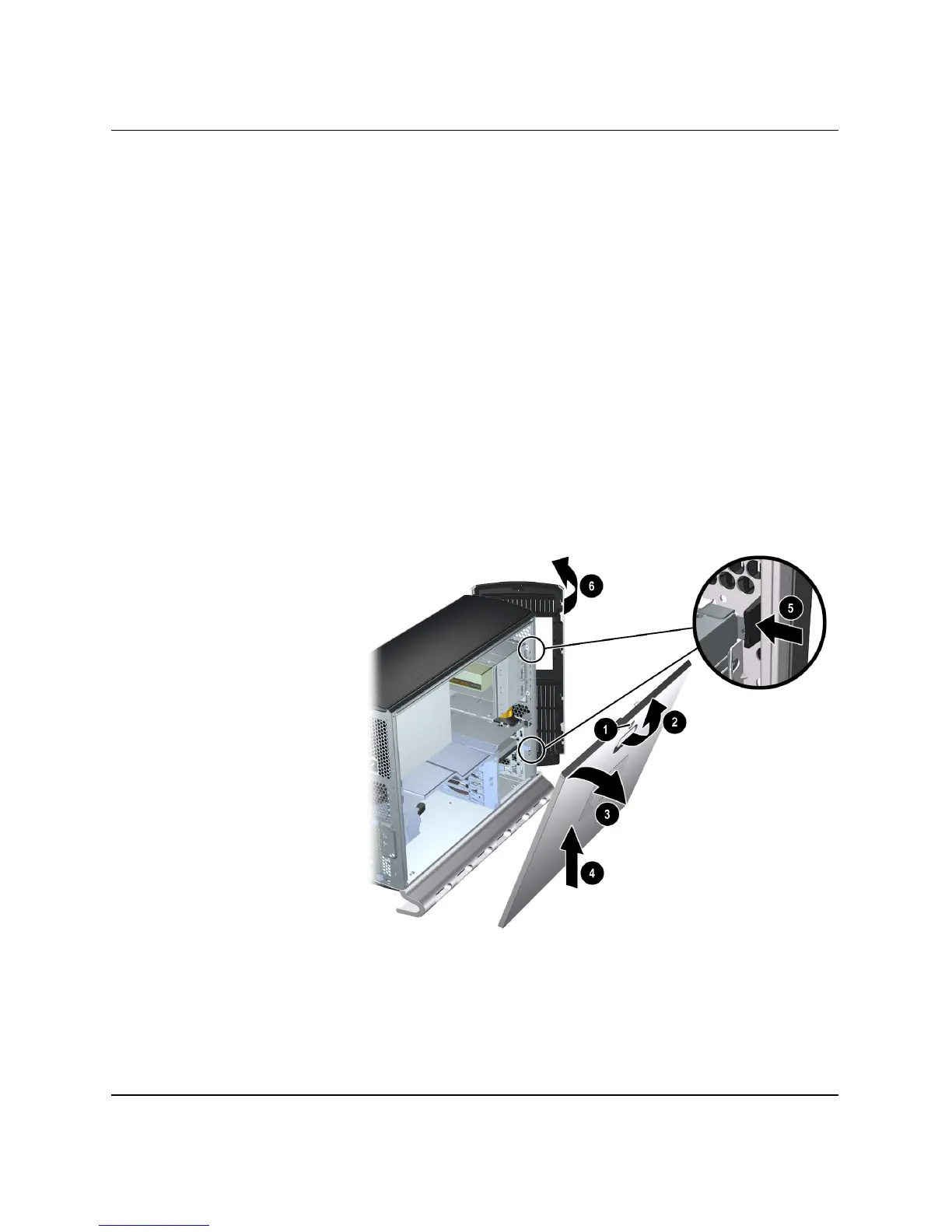

Removing the system access panels
