6–6 360201-002 Service Reference Guide, dc5000
Removal and Replacement Procedures— Microtower (µT) Chassis

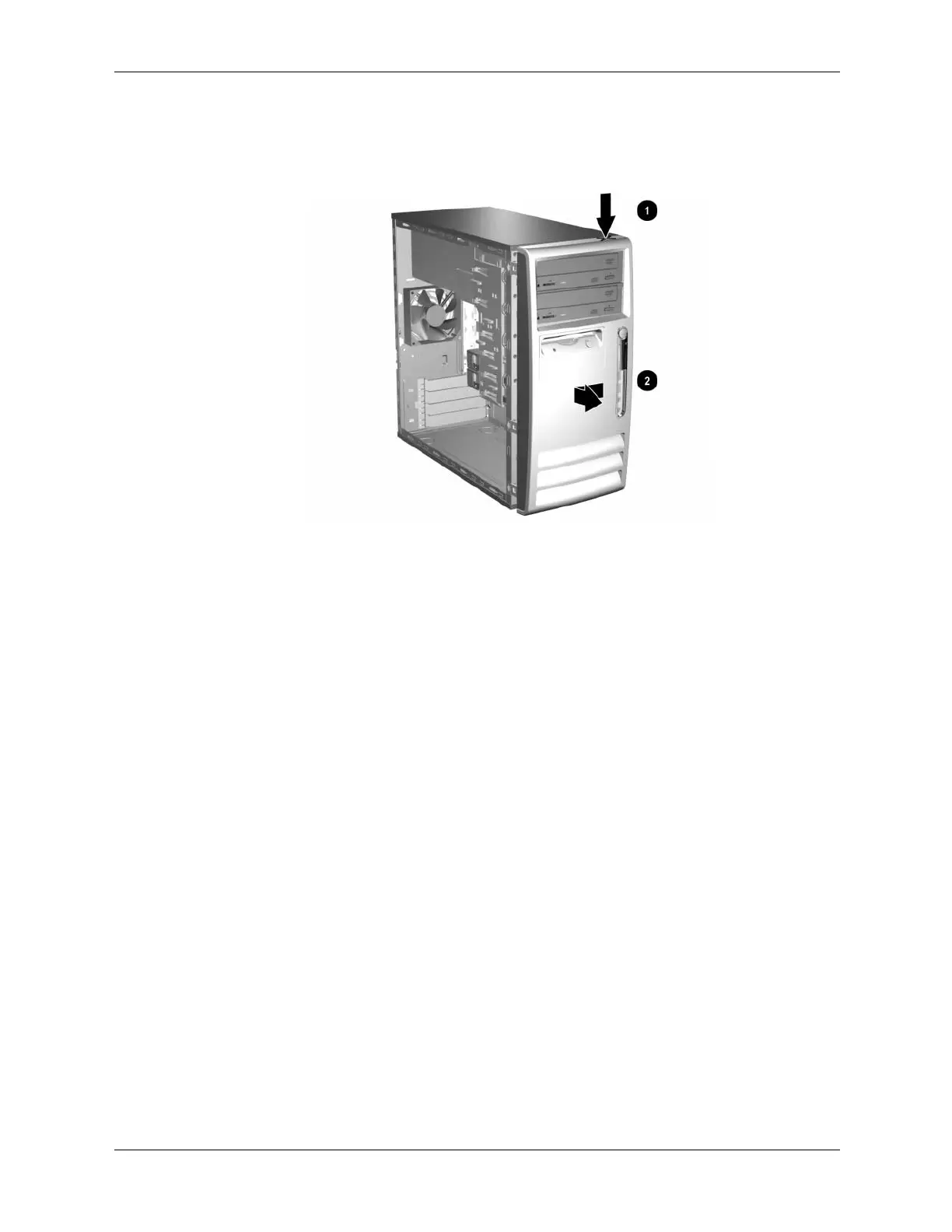

4. Press down on the upper right corner of the bezel to release the hook that secures the top of
the bezel to the chassis 1. Continue to rotate the bezel, then push the bezel to the left to
release the right side latches and rotate the bezel off the chassis from left to right 2.
