Service Reference Guide, dc5000 360201-002 6–7
Removal and Replacement Procedures— Microtower (µT) Chassis

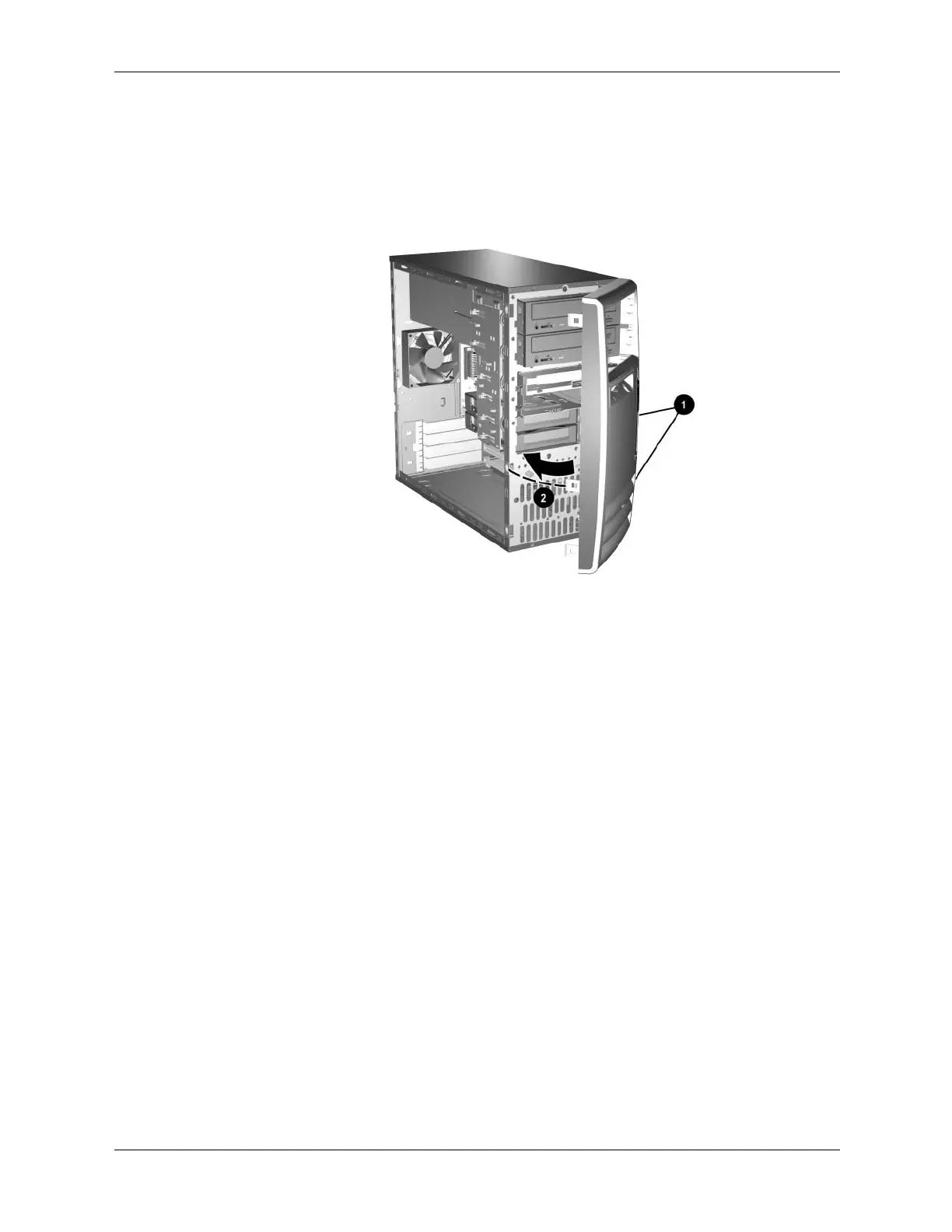

To reinstall the front bezel,
1. Position the chassis in the upright position.
2. Insert the two hooks on the right side of the bezel 1 into the rectangular holes on the chassis
then rotate the bezel into place 2 so that the three tabs on the left side of the bezel and the
single tab on the upper right corner of the bezel snap into the slots on the chassis.
