2-6 361834-002 Technical Reference Guide
System Overview

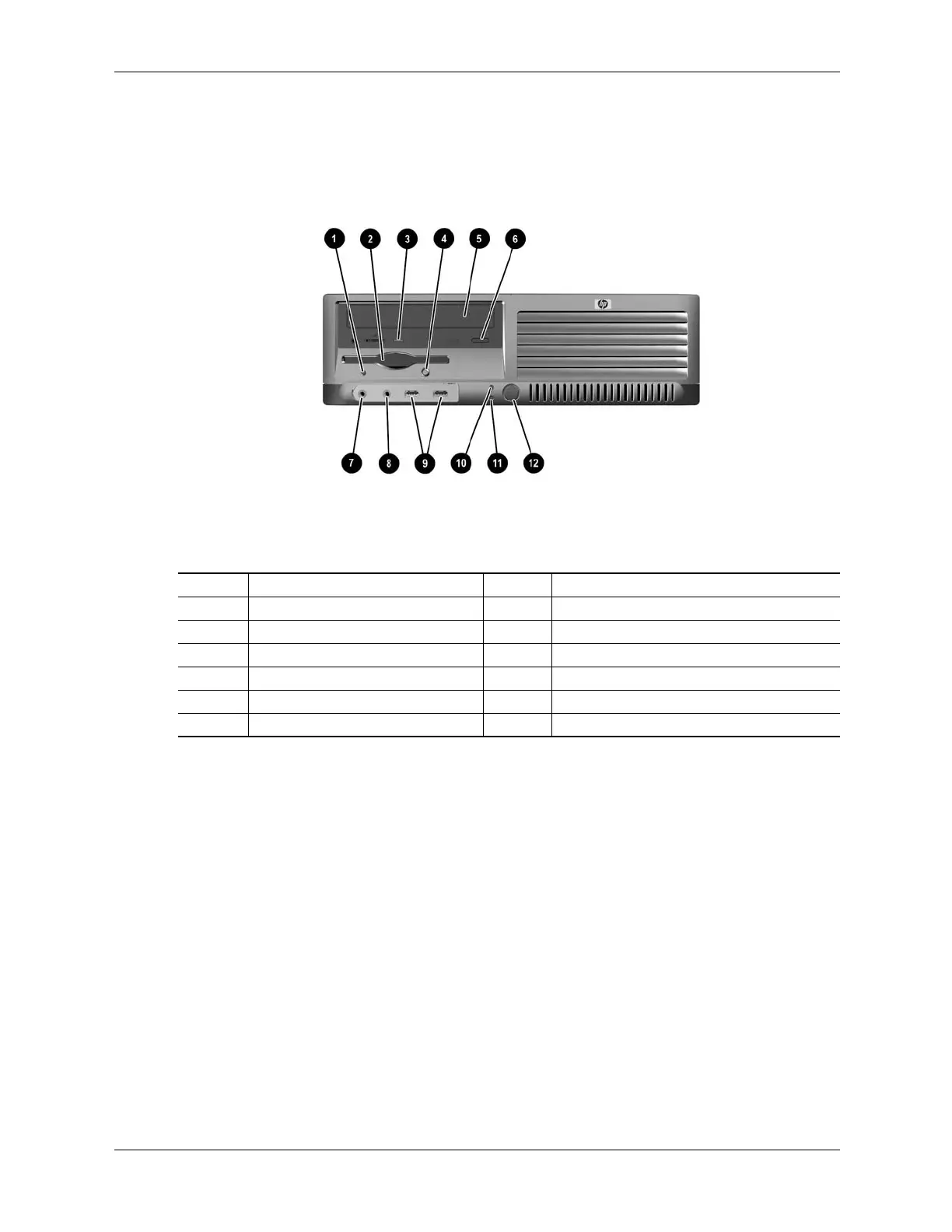

Figure 2-3 shows the front panel components of the Small Form Factor (SFF).
Figure 2-3. HP Compaq dc7100 SFF Front View
Item Description Item Decription
1 Diskette drive activity LED 7 Microphone audio In jack
2 Diskette drive media door 8 Headphone audio Out jack
3 CD-ROM drive acitvity LED 9 USB ports 7, 8
4 Diskette drive eject button 10 Hard drive activity LED
5 CD-ROM media tray 11 Power LED
6 CD-ROM drive open/close button 12 Power button
