HP Compaq dc7100 DT Technical Reference Guide

Technical Reference Guide 361834-002 2-11
System Overview
Figure 2-8 shows the rear views of the SFF form factor. Two configurations are available:
■ Without cardcage - Accepts two half-height PCI 2.3 cards, two half-height PCI Express cards
■ With card cage - Accepts two full-height PCI 2.3 cards only

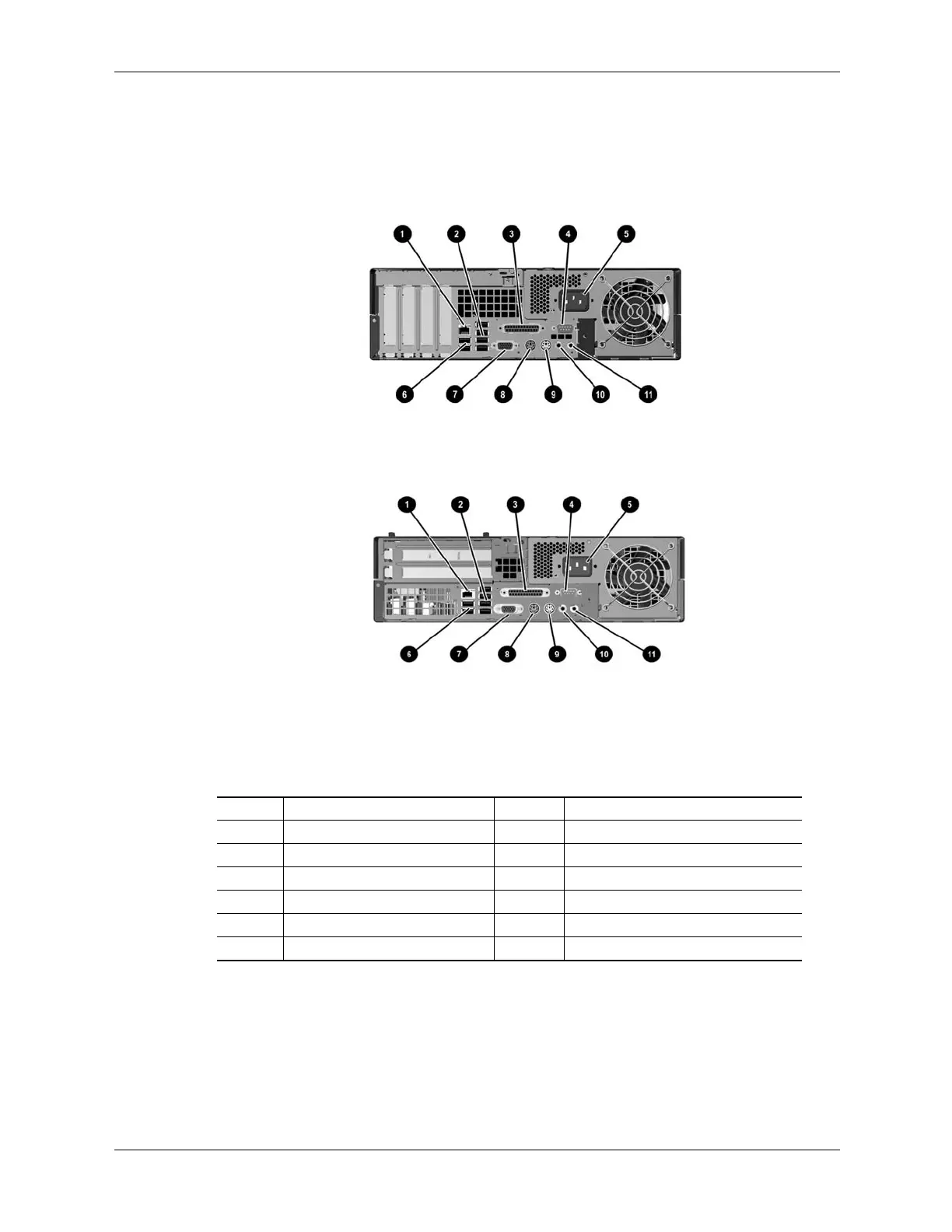

Figure 2-8. HP Compaq dc7100 SFF, Rear Views
Item Description Item Description
1 NIC (LAN) connector (RJ-45) 7 VGA monitor connector (DB-15)
2 USB ports 3 - 6 8 Mouse connector (PS/2)
3 Parallel port (DB-25) 9 Keyboard connector (PS/2)
4 Serial port (DB-9) 10 Line audio In
5 AC input connector 11 Headphone / Speaker audio Out
6USB ports 1, 2 -- --
SFF chassis without card cage
SFF Chassis with card cage

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
