HP Compaq dc7100 DT Technical Reference Guide

2-12 361834-002 Technical Reference Guide
System Overview

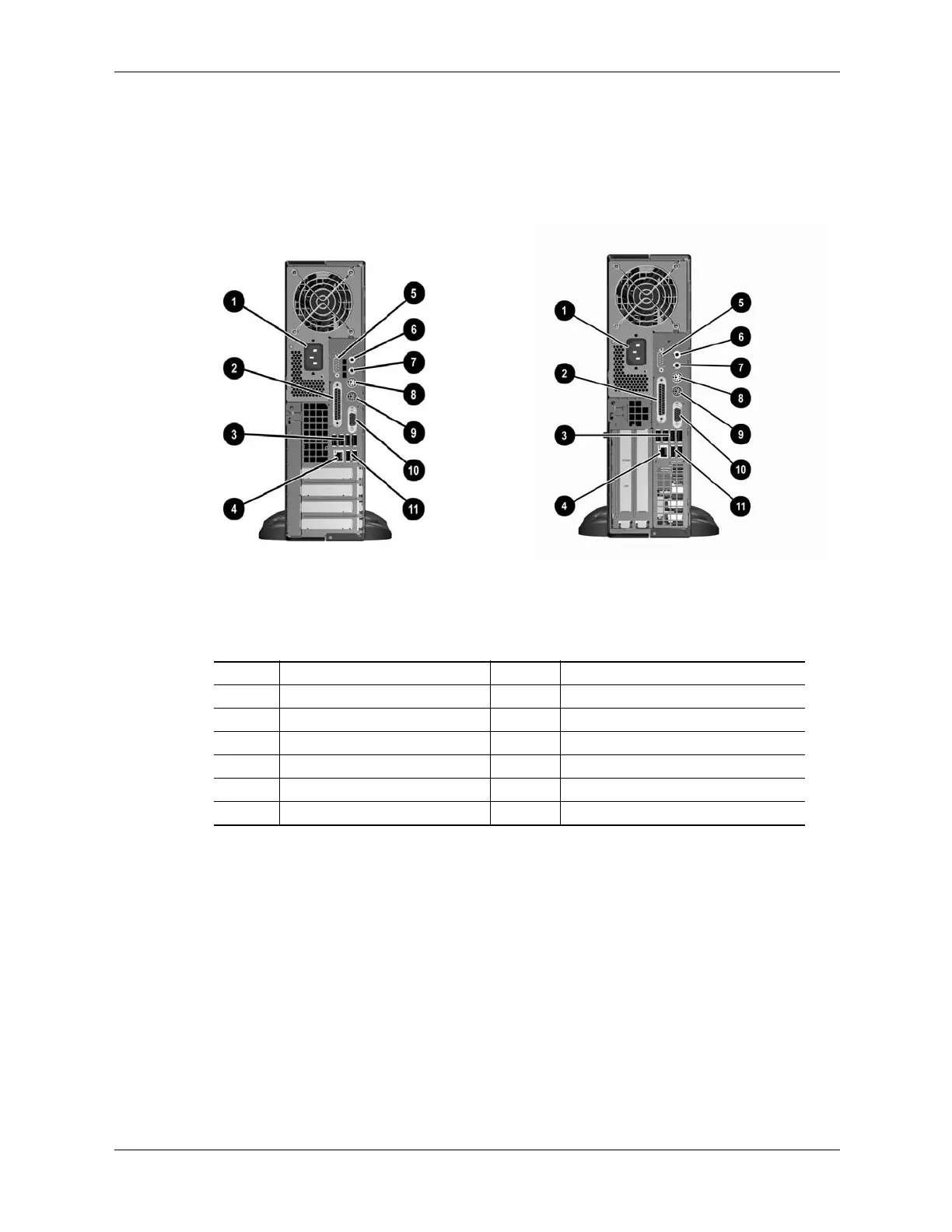

Figure 2-9 shows the rear views of the ST form factor. Two configurations are available:
■ Without cardcage - Accepts two half-height PCI 2.3 cards, two half-height PCI Express cards
■ With card cage - Accepts two full-height PCI 2.3 cards only
Figure 2-9. HP Compaq dc7100 ST, Rear Views
ST chassis with card cage
ST chassis without card cage
Item Description Item Description
1 AC input connector 7 Line audio In
2 Parallel port (DB-25) 8 Keyboard connector (PS/2)
3 USB ports 3 - 6 9 Mouse connector (PS/2)
4 NIC (LAN) connector (RJ-45) 10 VGA monitor connector (DB-15)
5 Serial port (DB-9) 11 USB ports 1, 2
6 Headphone / Speaker audio Out -- --

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
