HP Compaq Elite 8300 All-in-One User Manual

7. Remove the power supply (see Power supply on page 80).
8. Remove the speakers (see
Speakers on page 76).
9. Remove the side panels (see
Side panels on page 78).
10. Remove the front bezel (see
Front bezel on page 94).
11. Disconnect the backlight cable from the display panel.
NOTE: Replace the backlight cable with the new backlight cable that comes with the new
display panel kit.
Remove the backlight cable from the defective panel before sending the panel back to the
supplier.

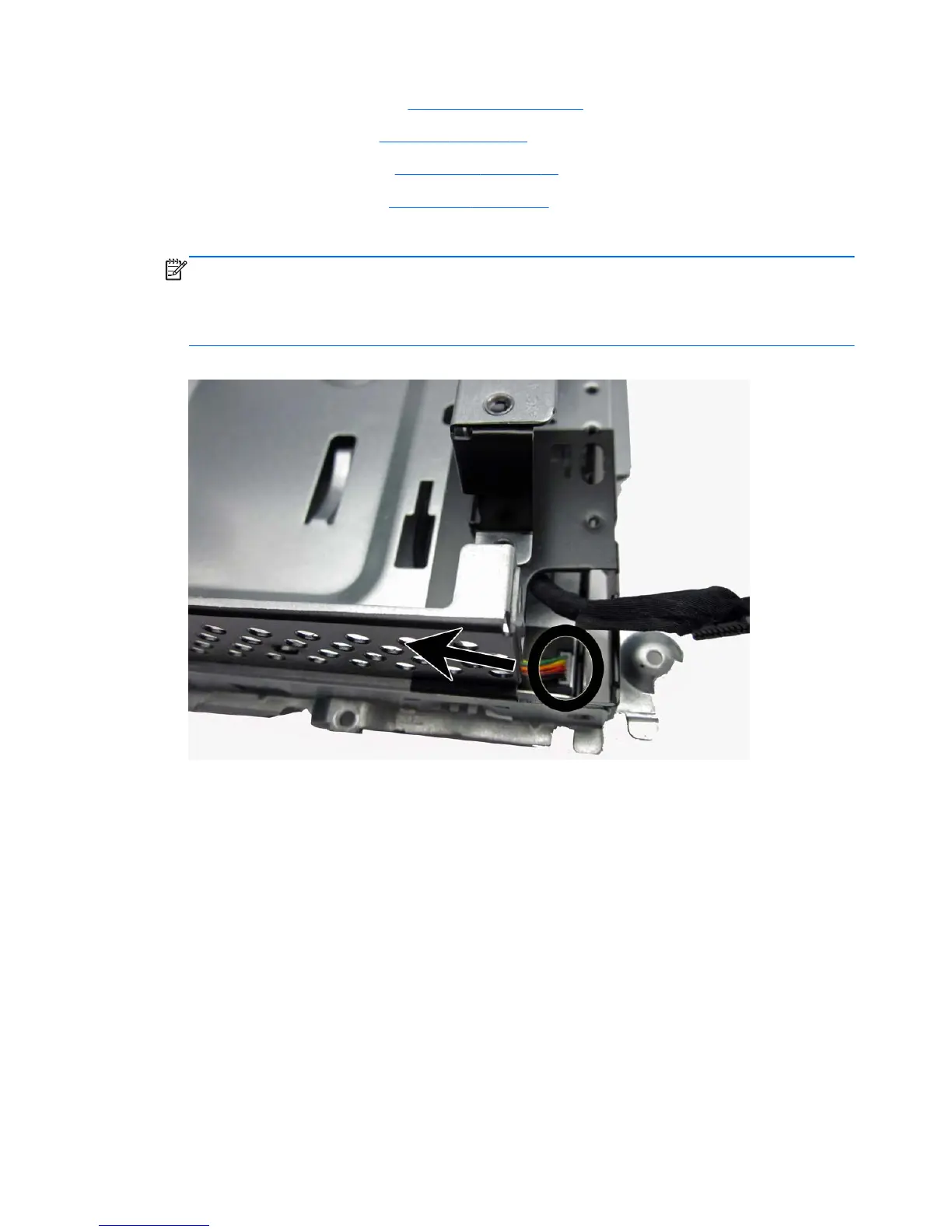

Figure 7-79 Disconnecting the backlight cable from the display panel
100 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
