12. Model 6300: Remove the four Torx screws that secure the display panel to the frame. The screw
locations for each manufacturer are stamped into the metal.
The LG (1) and AUO (2) panels are secured with two screws on each side (left and right).

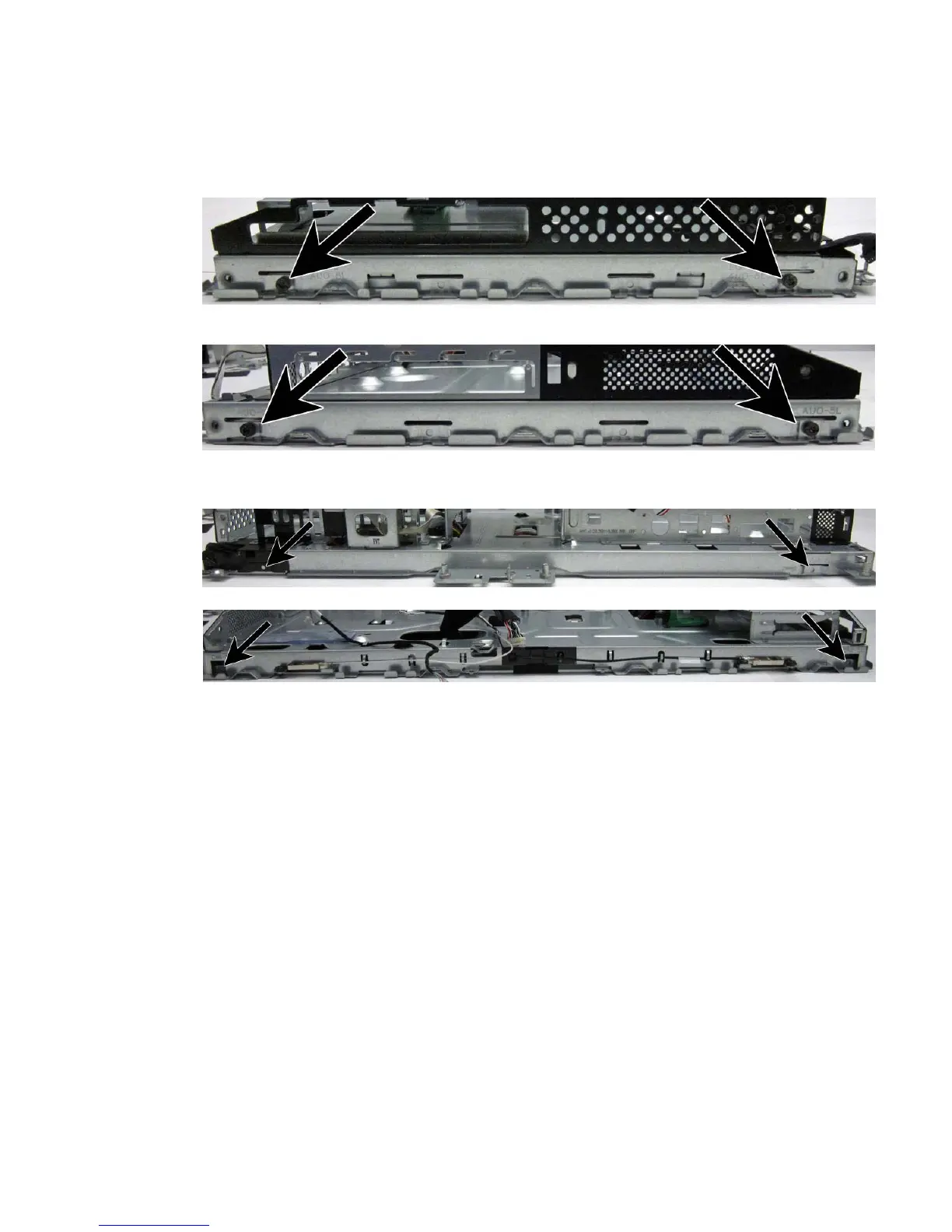

Figure 7-80 Display panel screw locations – 6300 models – LG or AUO panel
The CMI panel is secured with two screws on top, two screws on the bottom.
Figure 7-81 Display panel screw locations – 6300 models – CMI panel
- or-
Display panel 101
