HP Compaq Elite 8300 All-in-One User Manual

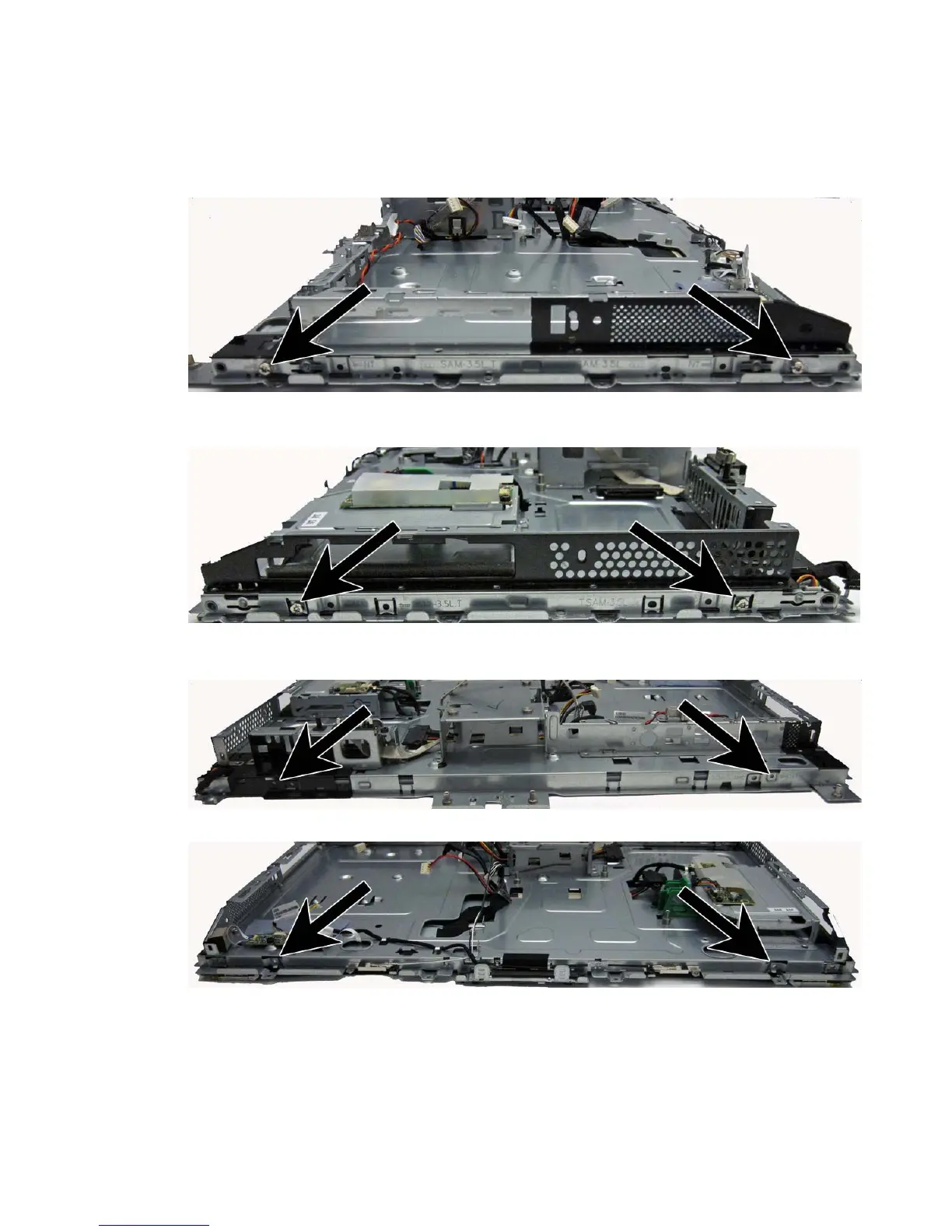

13. Model 8300: Remove the four Torx screws that secure the display panel to the frame. The screw
locations for each manufacturer are stamped into the metal.
The LG (1) and AUO (2) panels are secured with two screws on each side (left and right).
Figure 7-82 Display panel screw locations – 8300 models – Samsung or LG panel
The CMI panel is secured with two screws on top, two screws on the bottom.
Figure 7-83 Display panel screw locations – 8300 models – CMI panel
14. Lift the display panel from the frame.
102 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
