HP Compaq Elite 8300 All-in-One User Manual

15. Disconnect the display cable from the display panel by pressing in on the tabs (1) on the side of
the connector, and pulling the cable from the connector (2).

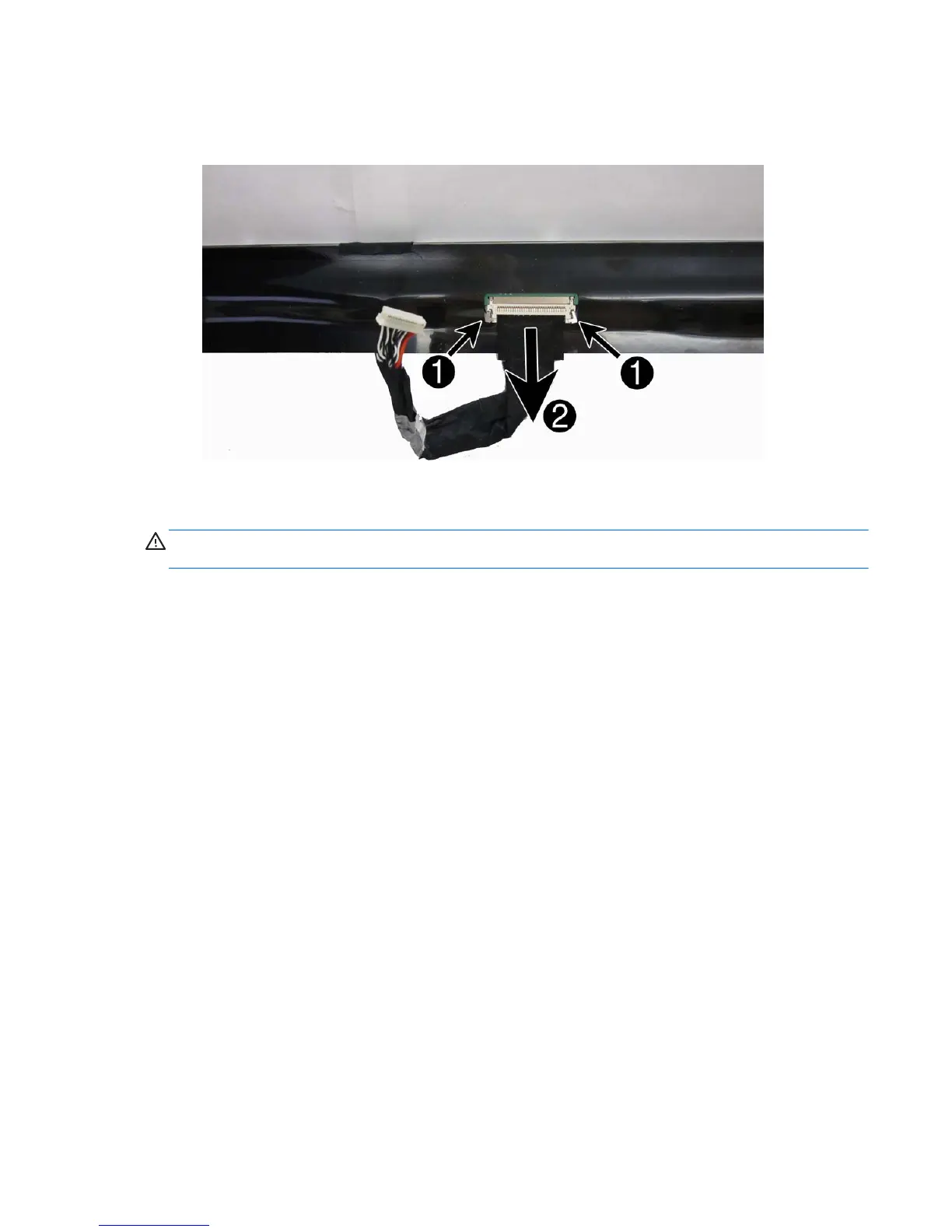

Figure 7-84 Disconnecting the display cable from the display panel
Be sure to correctly position the jumpers on the converter board for the installed display panel, as
follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board and display
panel.
●
21.5-inch panel
◦
AUO panel: pins (1)(2)
◦
CMI panel: pins (3)(4)
◦
LG panel: pins (7)(8)
●
23.0-inch panel
◦
CMI panel: pins (5)(6)
◦
LG panel: pins (9)(10)
◦
Samsung panel: pins (11)(12)
Display panel 103

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
