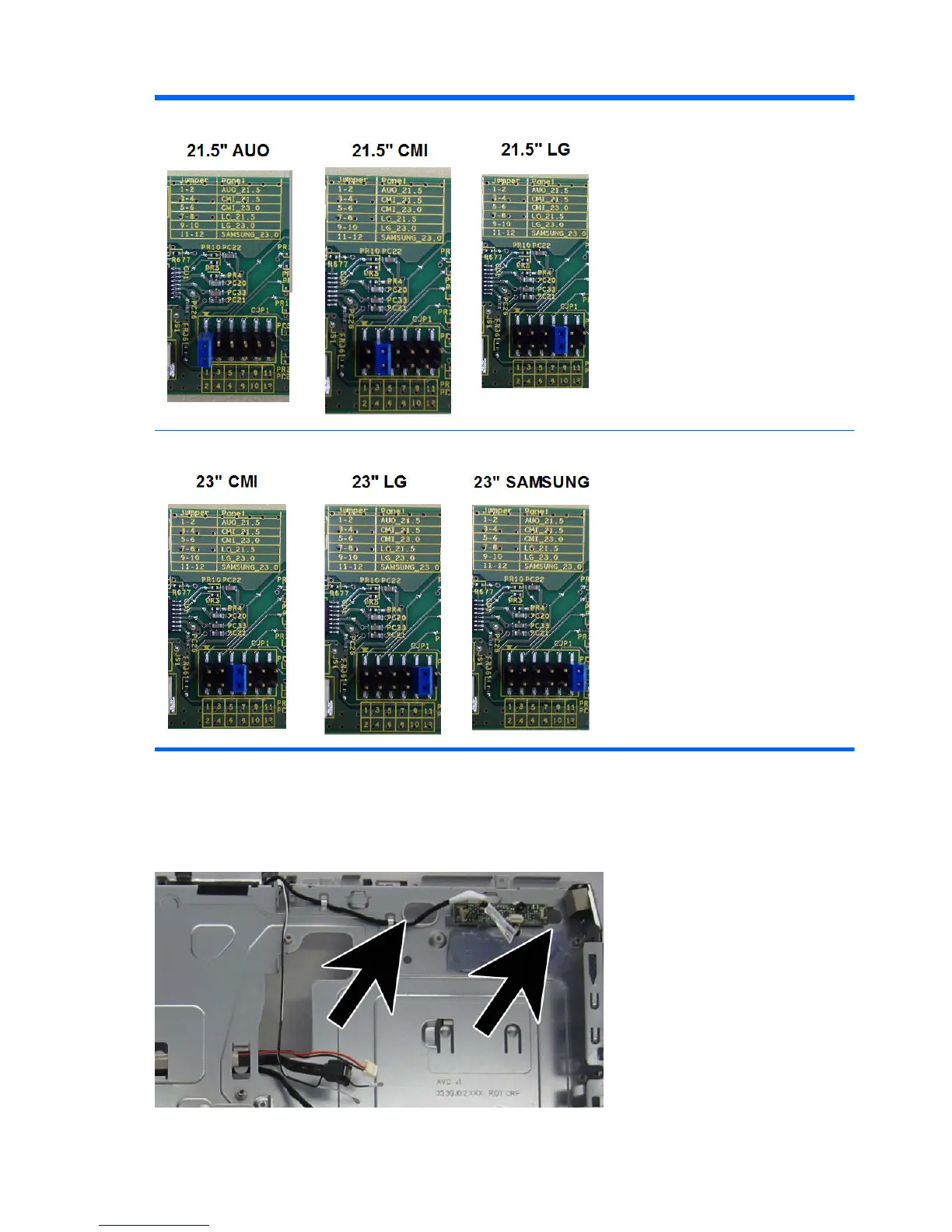

21.5-inch
23.0-inch
To install a display panel, reverse the removal procedures.
When replacing a touch display panel, be sure to route the ZIF cables through separate holes in the
frame so they correctly connect to the touch sensor board.
104 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Compaq Elite 8300 All-in-One and is the answer not in the manual?

HP Compaq Elite 8300 All-in-One Specifications

General IconGeneral
RAMUp to 16 GB DDR3
NetworkIntegrated Intel 82579LM Gigabit Ethernet
ChipsetIntel Q77 Express
ProcessorIntel Core i5-3470S
Storage128 GB SSD, 256 GB SSD
Display23-inch Full HD (1920 x 1080)
GraphicsIntel HD Graphics 2500
Operating SystemWindows 7 Professional
Optical DriveDVD+/-RW SuperMulti
USB Ports6 x USB 2.0
Wireless802.11a/b/g/n
AudioIntegrated High Definition Audio, Internal Speaker
PortsVGA, DisplayPort, RJ-45, audio in/out
