4. Remove the lower panel (see Lower panel on page 40).
5. Remove the metal plate (see
Metal plate on page 41).
6. Disconnect the antenna cables from the module (1).
7. Remove the Phillips screw (2) that secures the module to the computer.

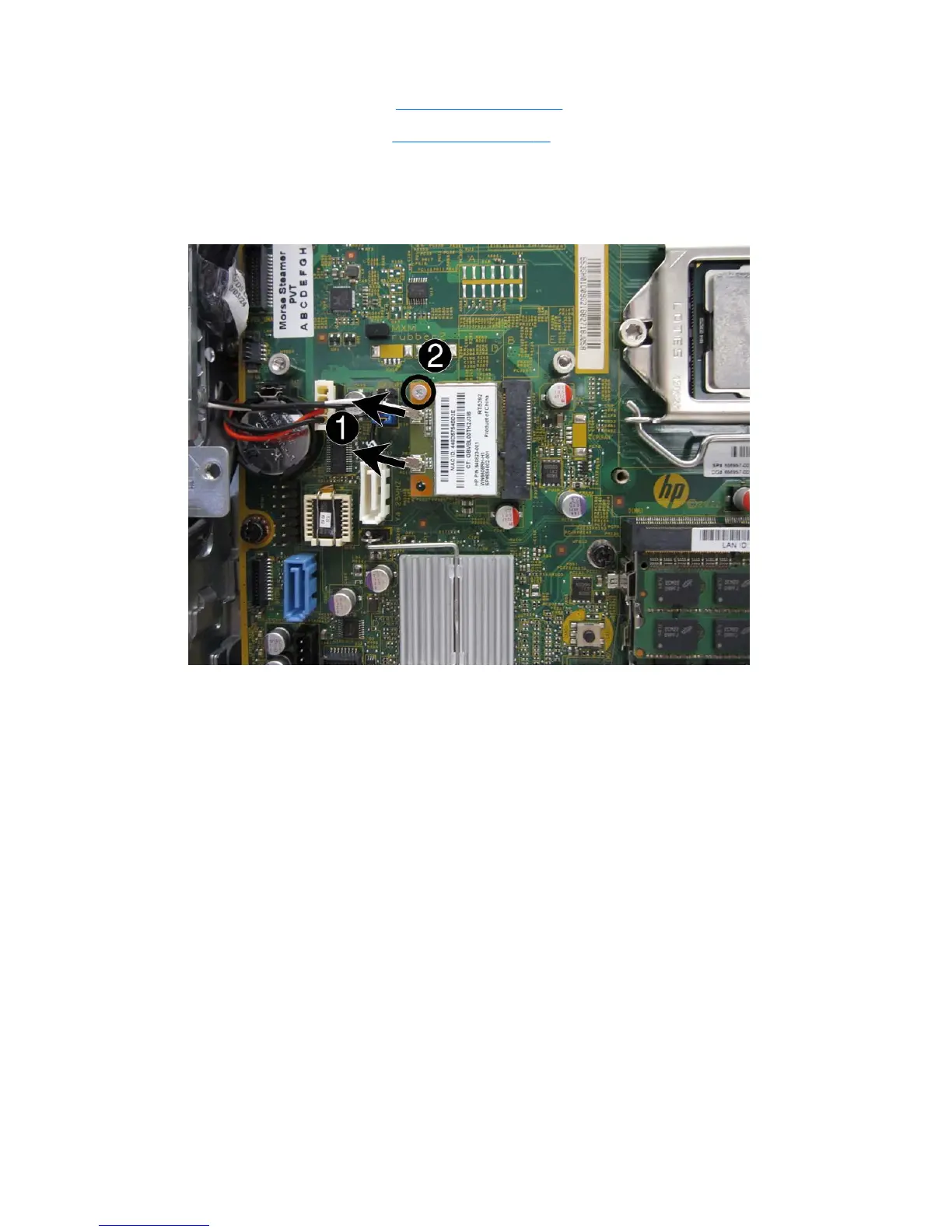

Figure 7-52 Removing the WLAN module screw and antennas
72 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
