Removal and Replacement Procedures
Maintenance and Service Guide 6–9

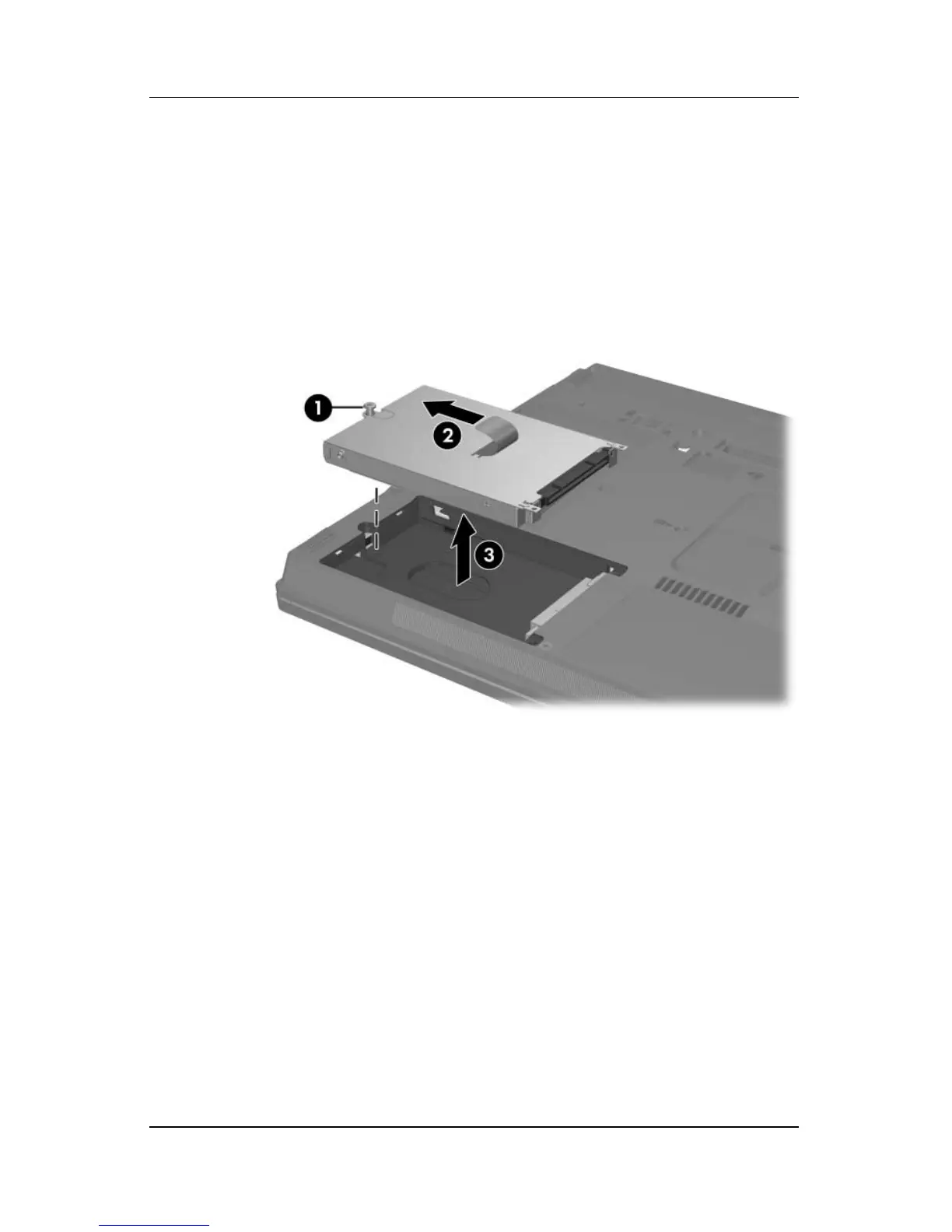

a. Loosen the PM2.5×13.0 spring-loaded hard drive
retention screw 1.
b. Grasp the mylar tab on the right side of the hard drive and
slide the hard drive 2 to the left to disconnect it from the
system board.
c. Remove the hard drive 3 from the hard drive bay.
Removing the Hard Drive
