6–10 Maintenance and Service Guide
Removal and Replacement Procedures
d. Remove the four PM2.5×4.0 screws 1 and the two
PM1.5×4.0 screws 2 that secure the hard drive frame to
the hard drive.
e. Lift the frame 3 straight up to remove if from the hard
drive.
f. Remove the hard drive connector 4 from the hard drive.

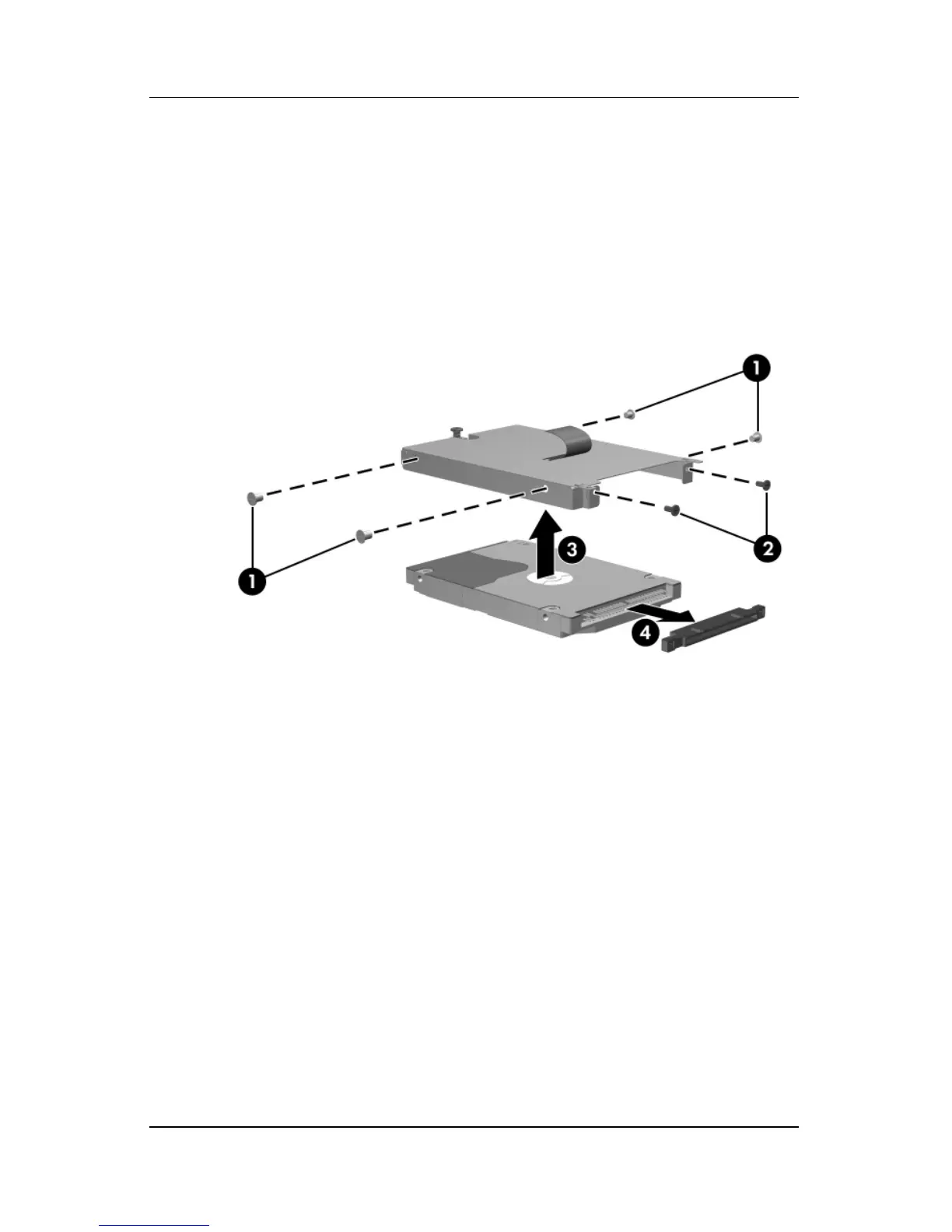

Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard drive.
