1–8 Maintenance and Service Guide
Product Description

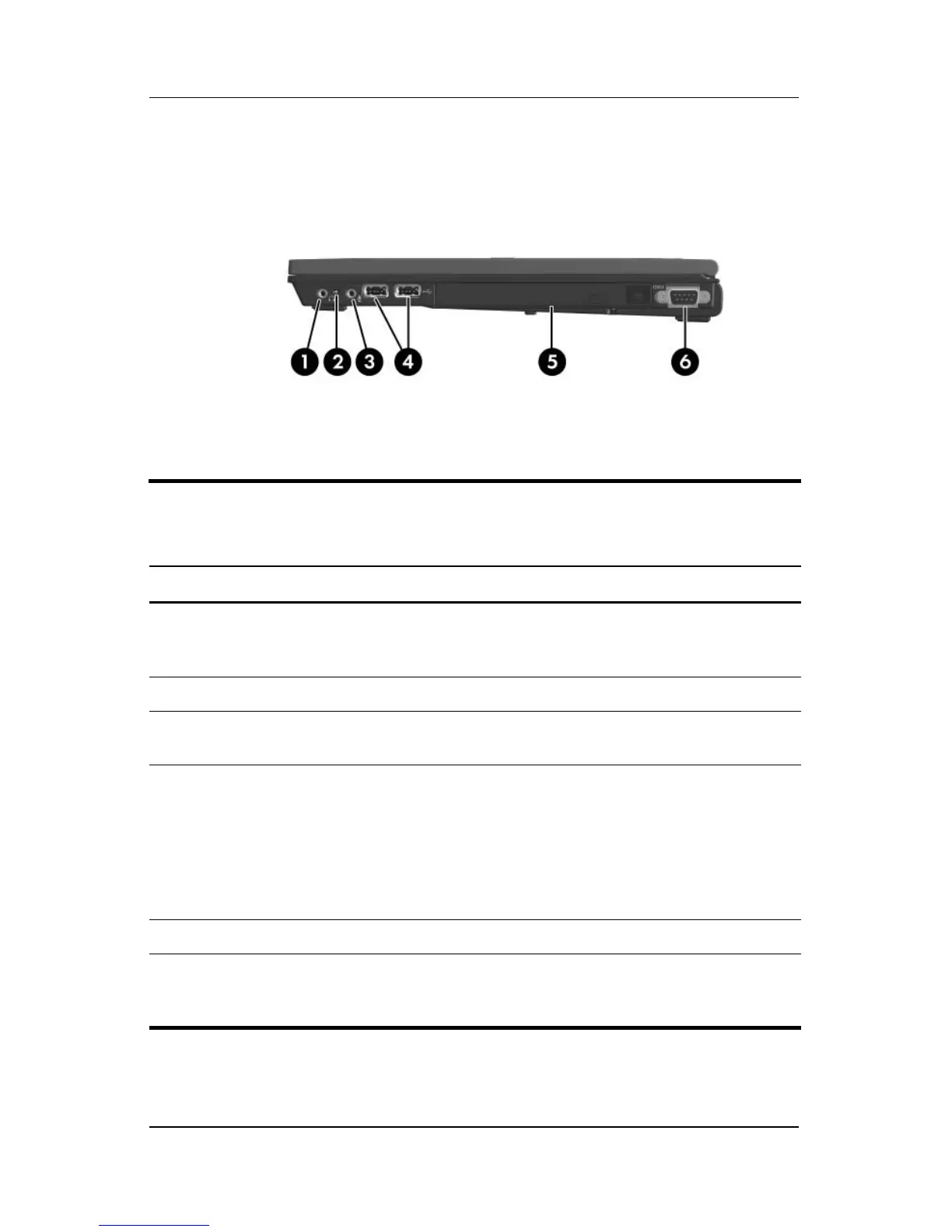

The external components on the right side of the notebook are
shown below and described in Table 1-2.
Right-Side Components
Table 1-2
Right-Side Components
Item Component Function
1Audio-out
(headphone) jack
Produces system sound when connected to
optional powered stereo speakers,
headphones, headset, or television audio.
2 Internal microphone Records sound.
3Audio-in
(microphone) jack
Connects an optional monaural
microphone.
4 USB ports (2)
(full-featured models
only)
Connect USB 1.1- and 2.0-compliant
devices to the notebook using a standard
USB cable, or connects an optional
External MultiBay or External MultiBay II to
the notebook. The External MultiBay must
also be connected to an external power
source.
5 MultiBay II Holds an optional MultiBay II device.
6Serial port
(full-featured models
only)
Connects an optional serial device.
