5–56 Maintenance and Service Guide
Removal and Replacement Procedures
7. Flex the left side of the base enclosure 1 until the
serial connector 2 is clear of the base enclosure.
8. Lift the left side of the system board 3 until it rests at
an angle.

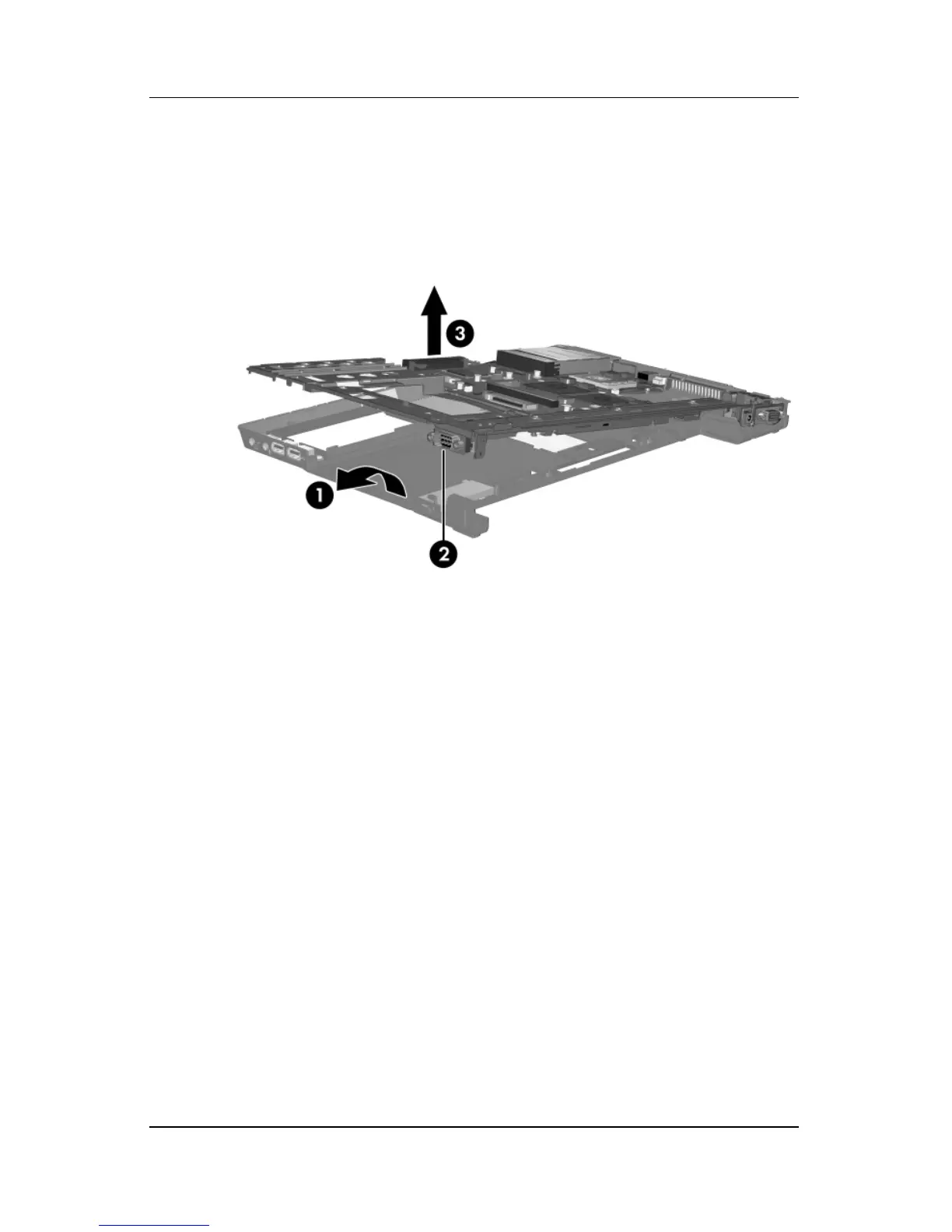

Releasing the System Board, Part 1
