Removal and Replacement Procedures
Maintenance and Service Guide 5–57

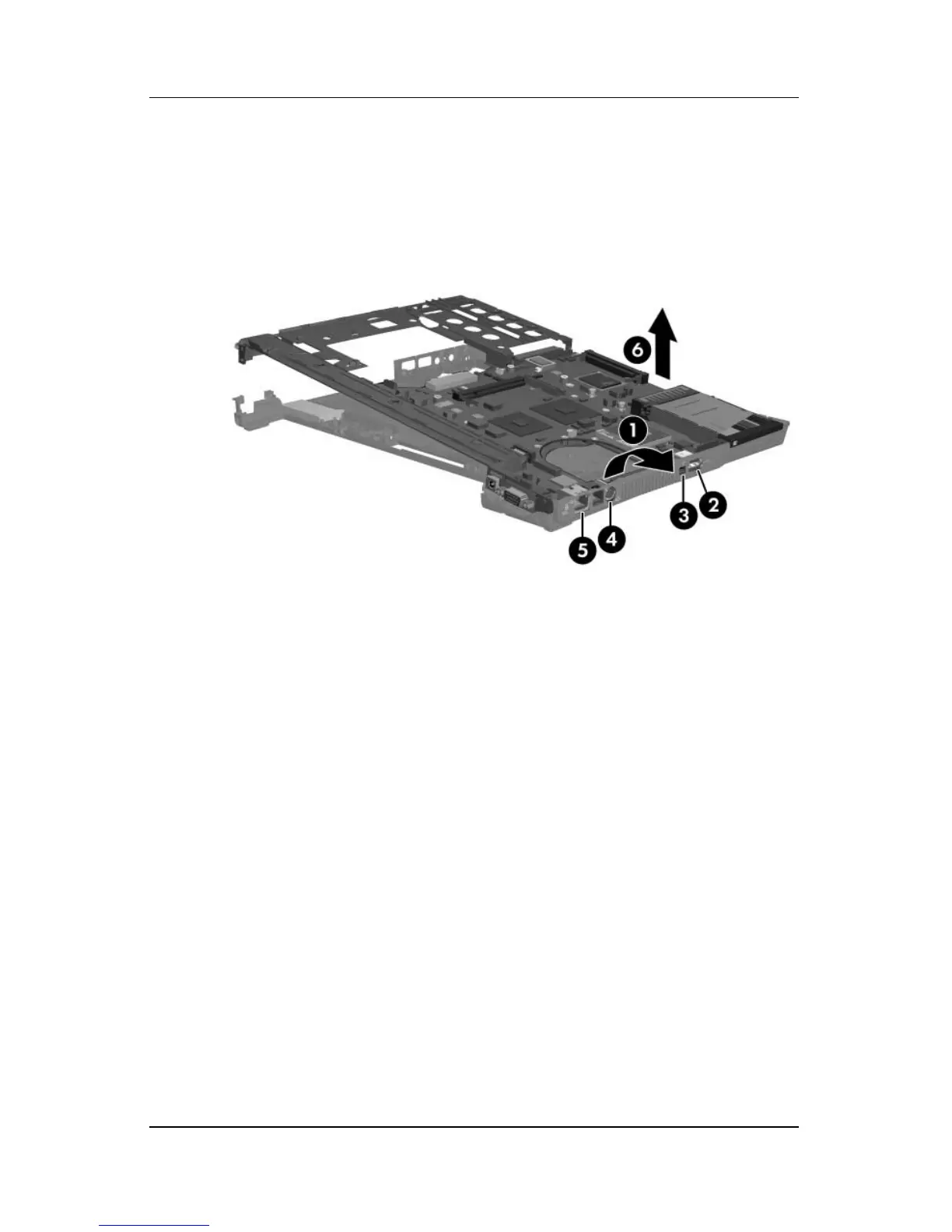

9. Flex the right side of the base enclosure 1 until the USB 2,
1394 3, S-Video 4, and RJ-45 connectors 5 are clear of the
base enclosure.
10. Lift the right side of the system board 6 until it rests at an
angle.
Releasing the System Board, Part 2
