C–14 Maintenance and Service Guide
Screw Listing

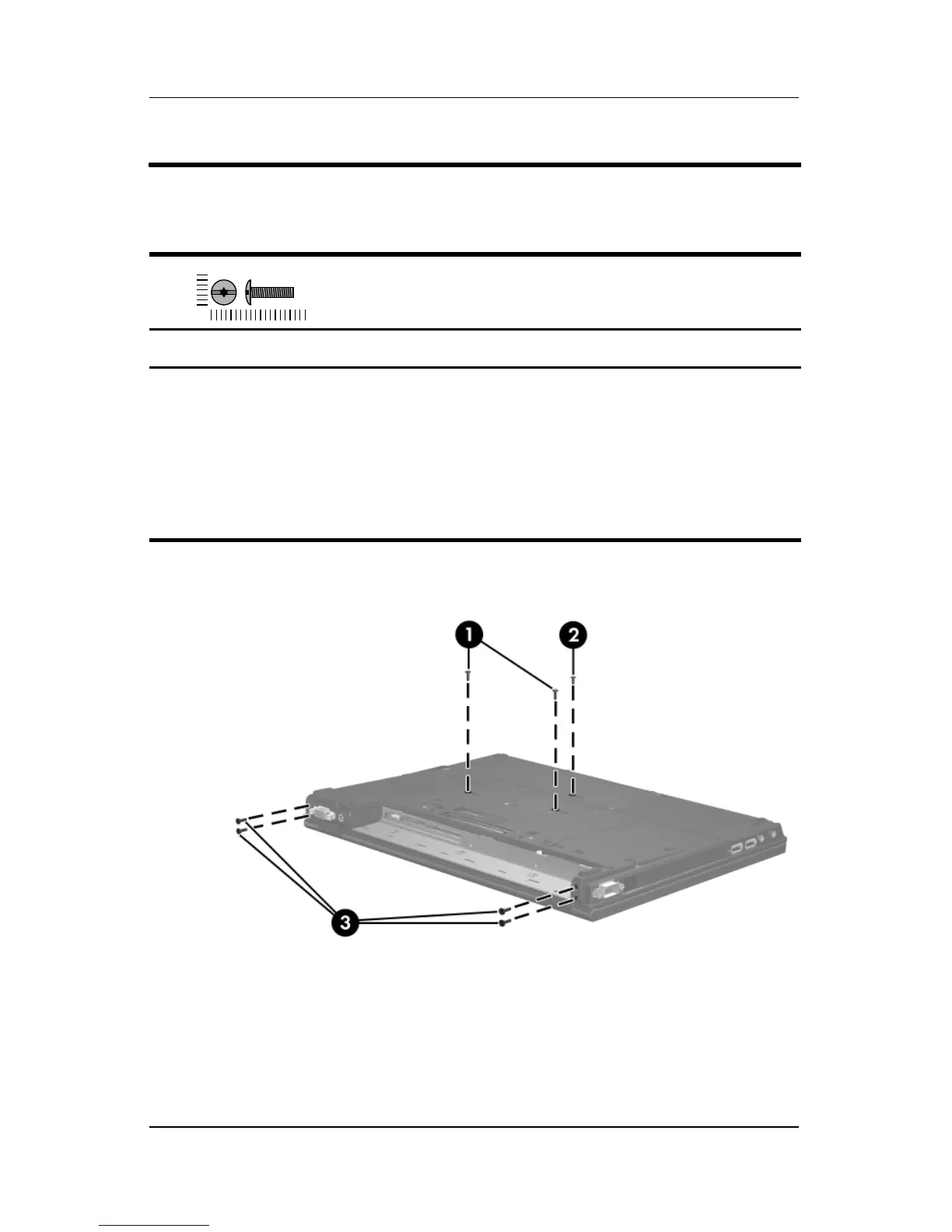

Torx T8M2.0×9.5 Screw Locations
Table C-8
Torx T8M2.0×9.5 Screw
Color Qty. Length Thread
Head
Width
Black 20 9.5 mm 2.0 mm 5.0 mm
Where used:
1 Two screws that secure the keyboard to the notebook (documented in
Section 5.9)
2 One screw that secures the TouchPad to the notebook (documented in
Section 5.17)
3 Four screws that secure the display assembly to the notebook (documented
in Section 5.19)
