Screw Listing
Maintenance and Service Guide C–21

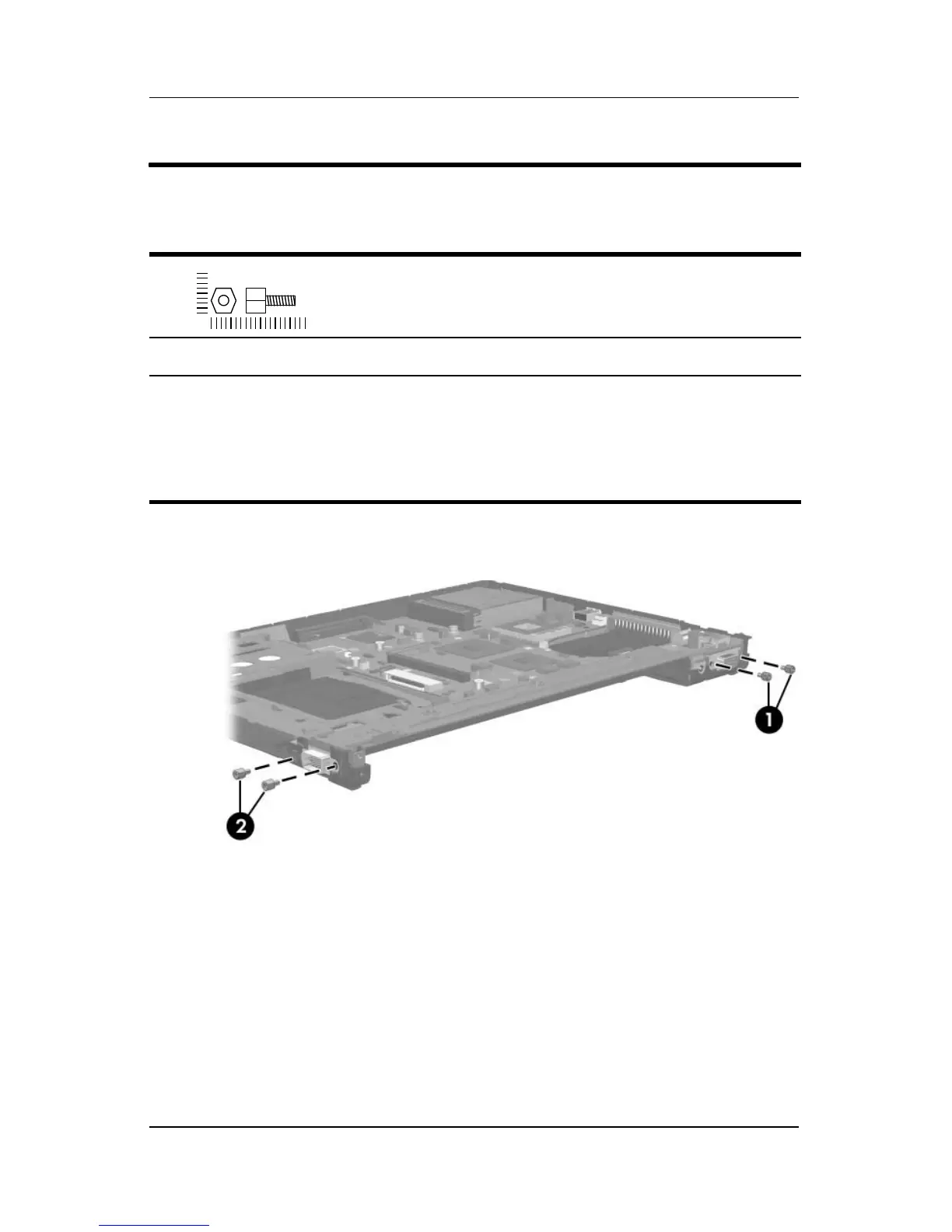

Hex Socket HM5.0×10.0 Screw Lock Locations
Table C-12
Hex Socket HM5.0×10.0 Screw Lock
Color Qty. Length Thread
Head
Width
Silver 4 10.0 mm 2.5 mm 5.0 mm
Where used:
1 Two screw locks that secure the system board to the notebook (documented
in Section 5.22)
2 Two screw locks that secure the serial connector module to the notebook
(documented in Section 5.25)
