Bezel Blanks
Description Spare part number
3.5-inch bezel blank 583653-001
5.25-inch bezel blank, optical drive 570838-001
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Remove the access panel (
Access Panel on page 100).
2. Remove the front bezel (
Front Bezel on page 101)..
3. To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it
(2).

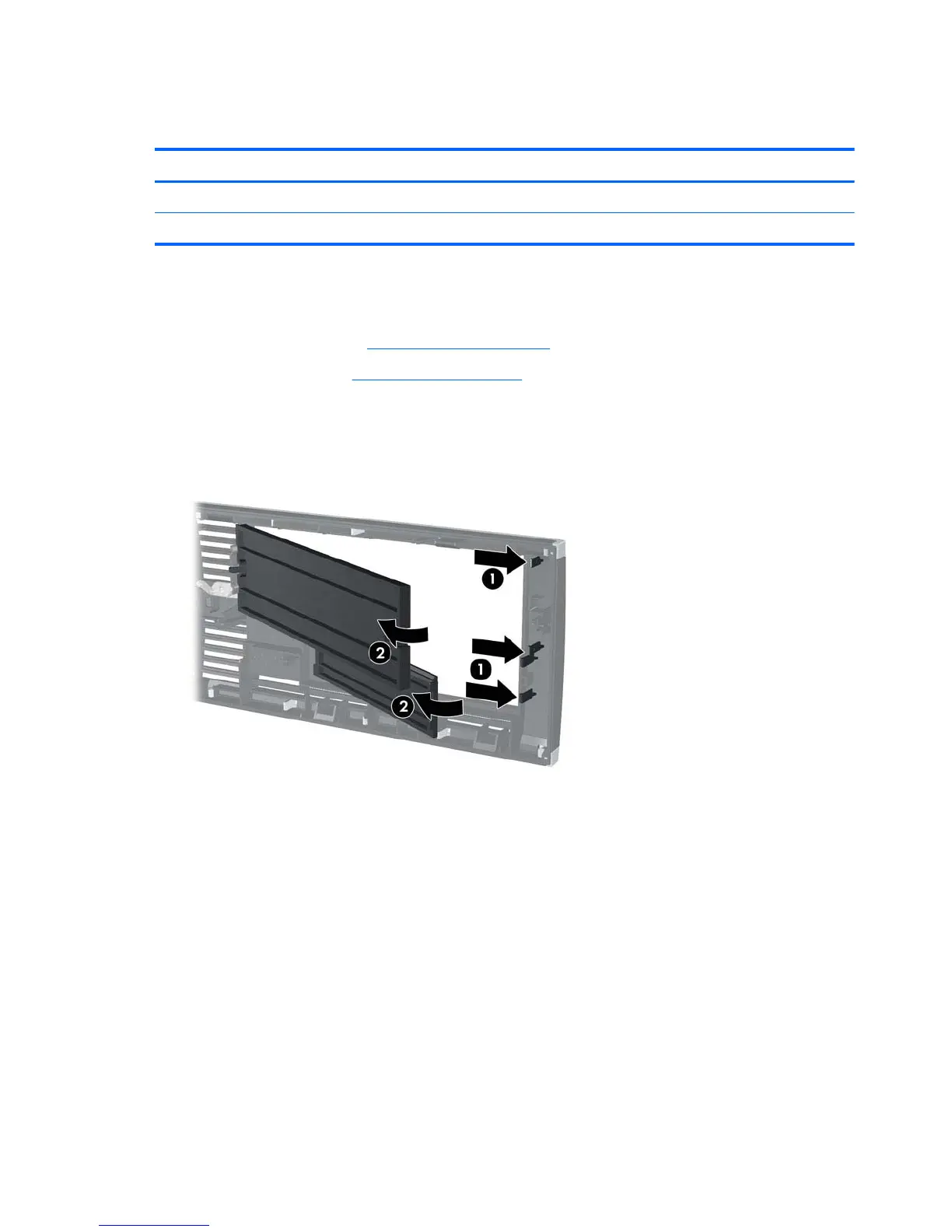

Figure 7-5 Removing a bezel blank
4. Replace the front bezel.
104 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
