Front Fan Assembly
Description Spare part number
Front fan assembly 585884-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 54).
2. Remove the access panel (
Computer Access Panel on page 55).
3. Remove the cables from the clip on the top of the fan assembly.

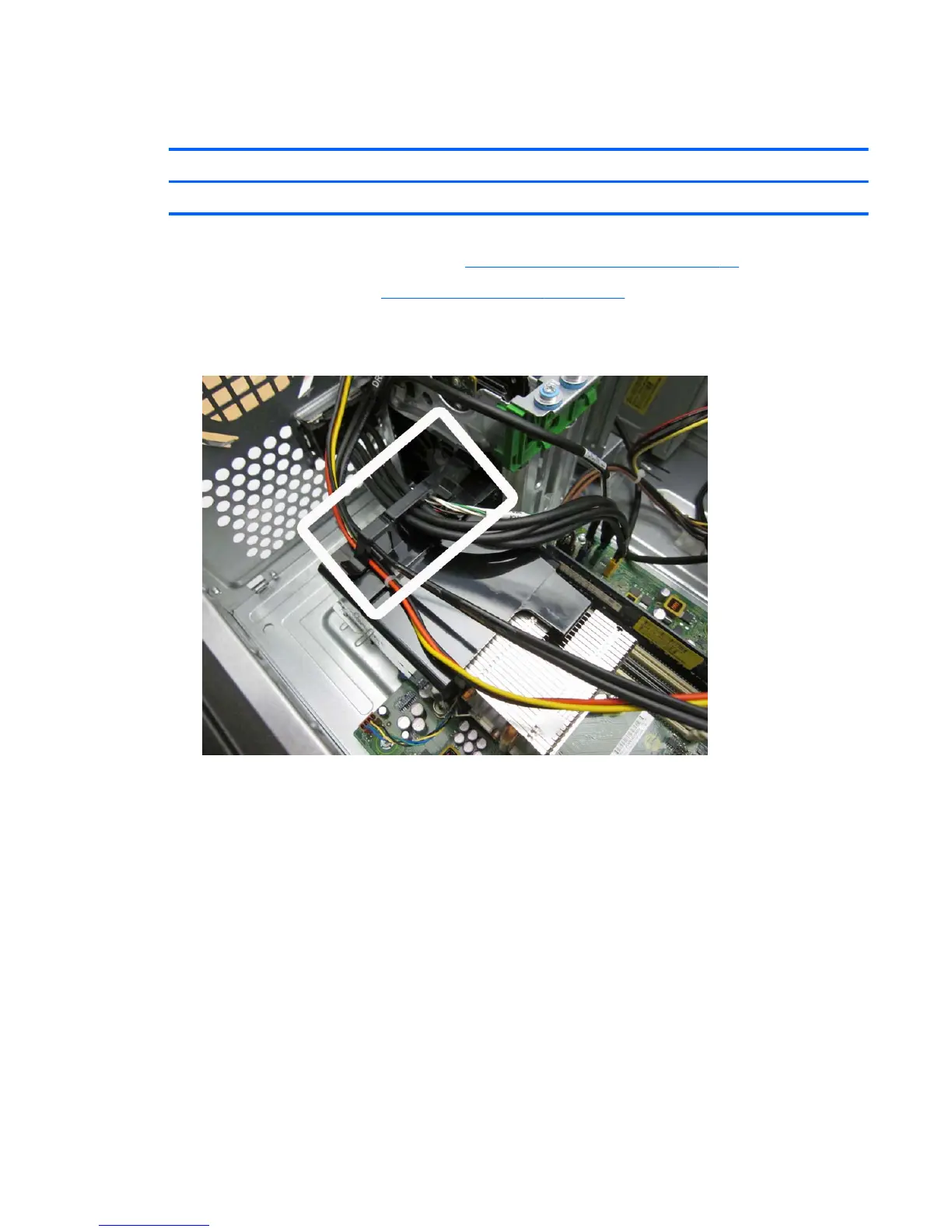

Figure 6-36 Removing the cables from atop the front fan assembly
4. Unplug the fan cable from the system board connector labeled CHFAN.
Front Fan Assembly
85
