Hood Sensor
Description Spare part number
Hood sensor 638816-001
The hood sensor is attached in a slot in the rear of the chassis.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 99).
2. Remove the access panel (
Access Panel on page 100).
3. Unplug the sensor cable from the system board connector labeled HSENSE (1).
4. Slide the hood sensor straight out of the notch in the chassis (2).
NOTE: A flat blade screwdriver can be used to push the hood sensor out of the slot.

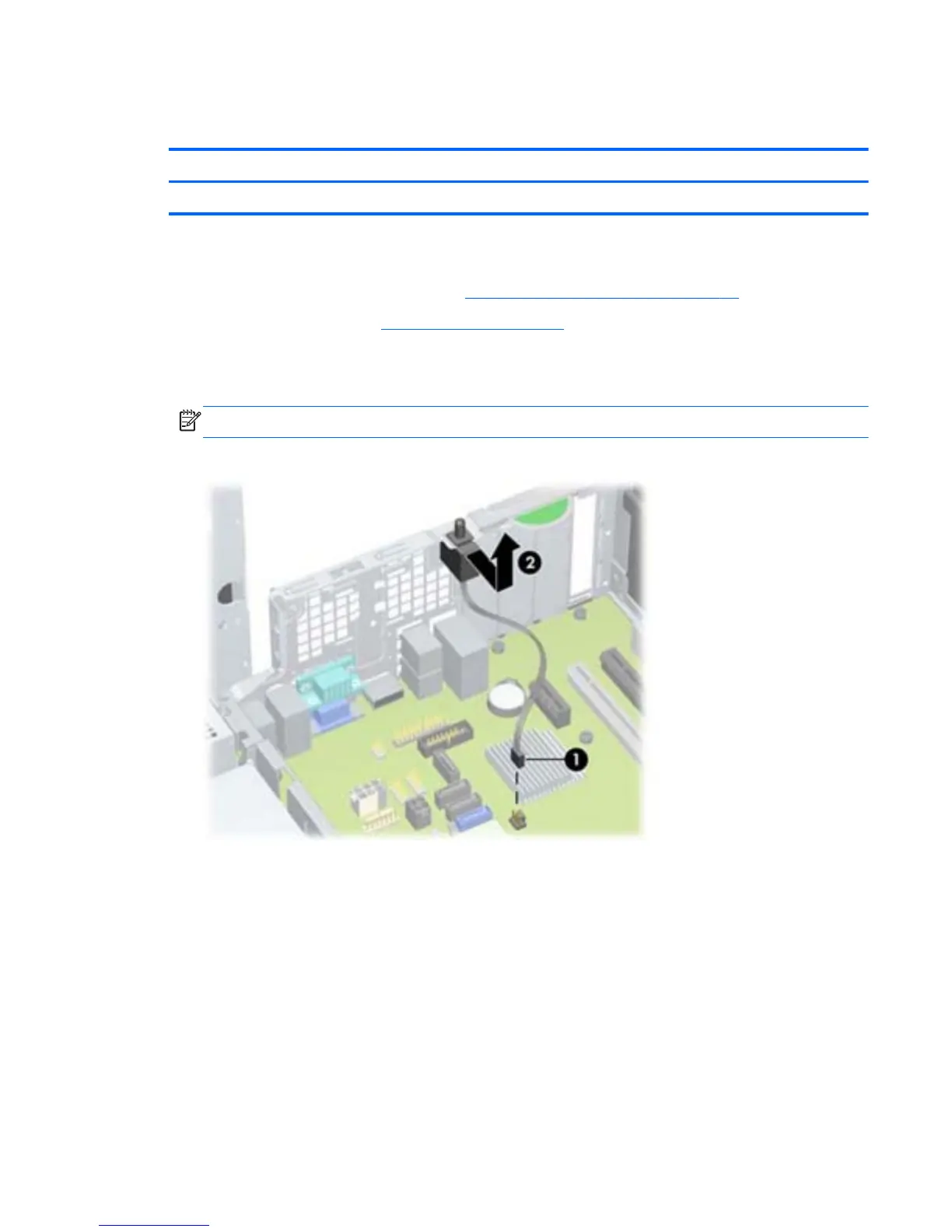

Figure 7-40 Removing the hood sensor from the chassis fan
To install the hood sensor, reverse the removal procedure.
