HP Compaq Pro 6305

7. Pull the assembly toward the rear of the unit (2), and then lift it out of the chassis.

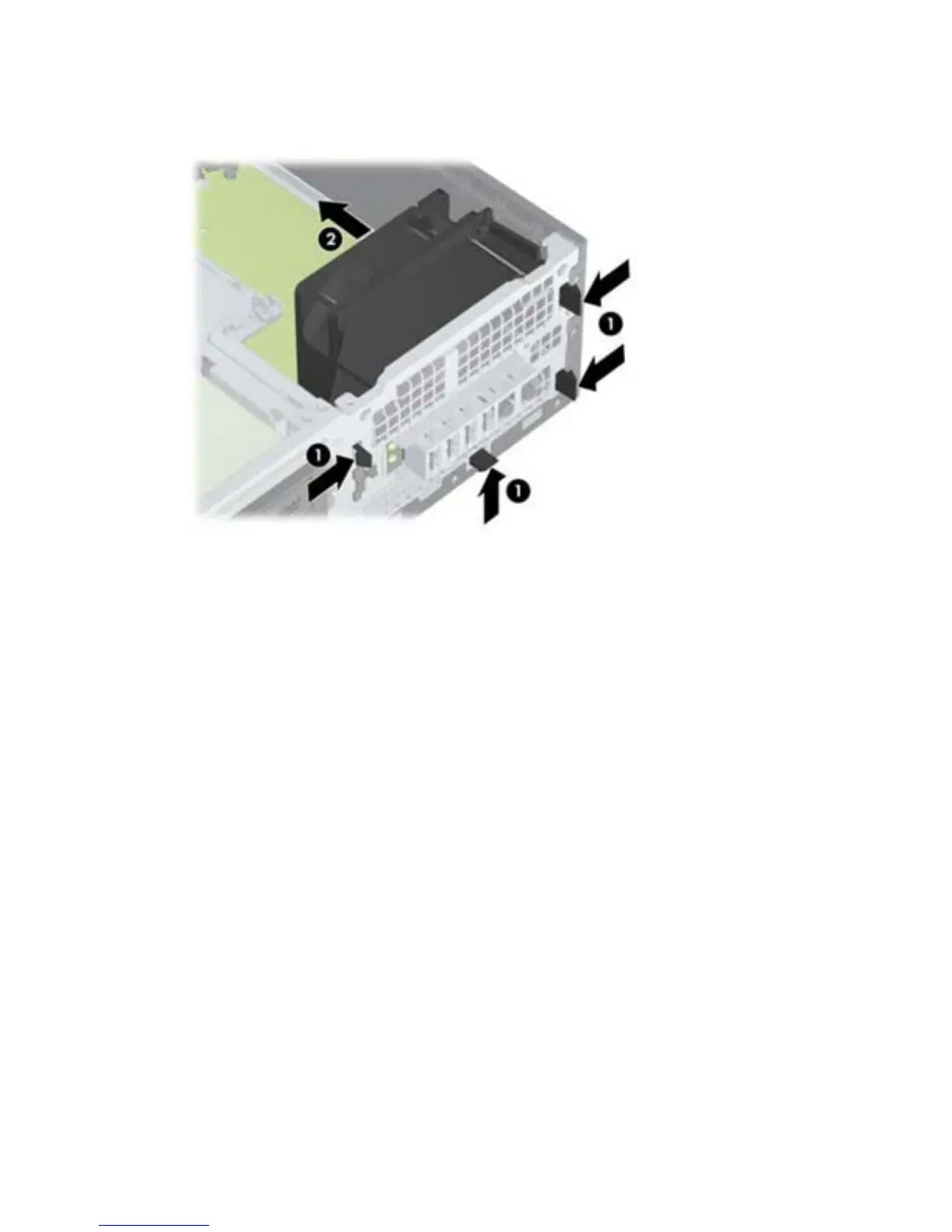

Figure 7-39 Removing the front fan
To install the front fan, reverse the removal procedure. Be sure to orient the air flow into the unit.
134 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
