HP Compaq Pro 6305 User Manual

Drive Positions

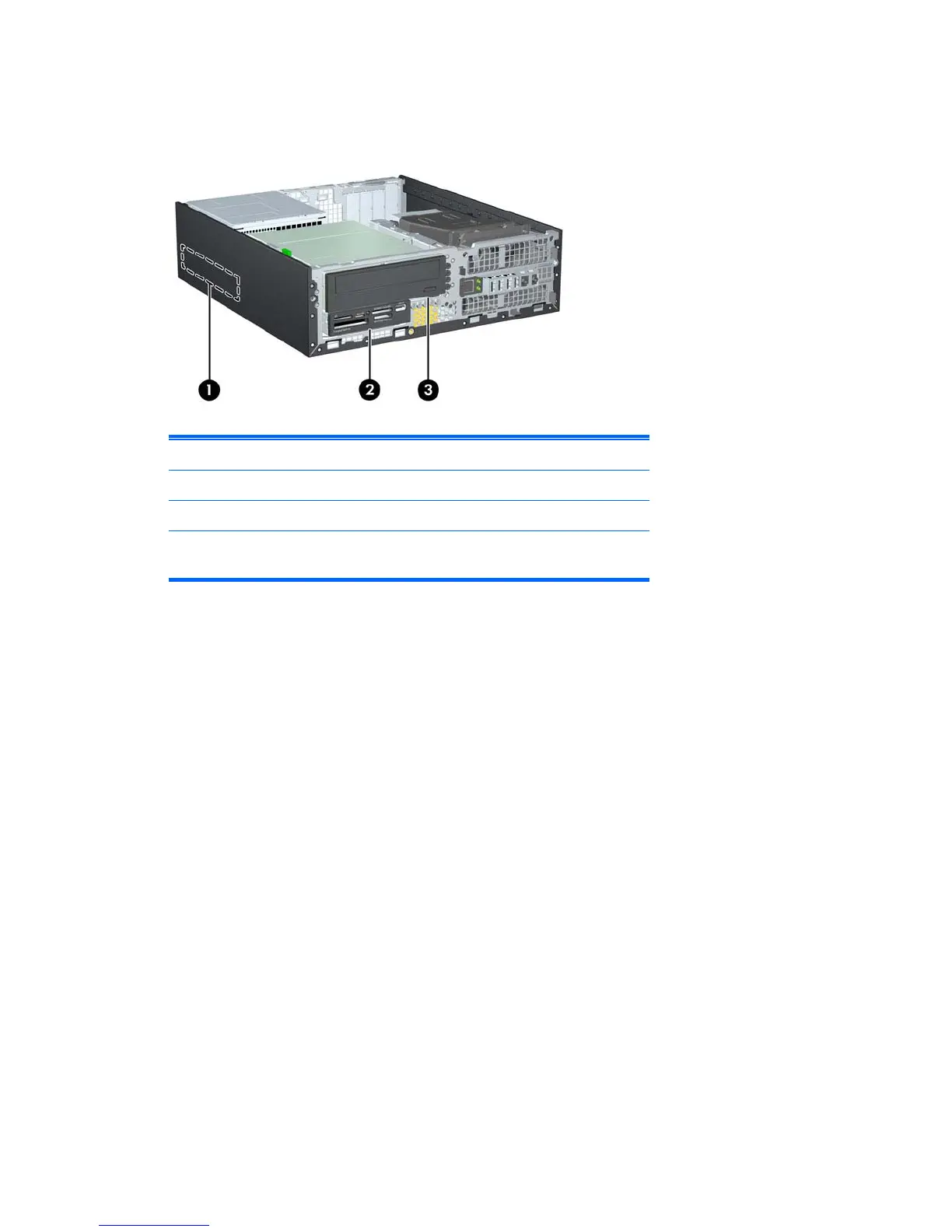

Figure 7-14 Drive Positions
Table 7-2 Drive Positions
1 3.5-inch internal hard drive bay
2 3.5-inch drive bay for optional drives (media card reader shown)
3 5.25-inch drive bay for optional drives (optical drive shown)
NOTE: The drive configuration on your computer may be different than the drive
configuration shown above.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
Installing and Removing Drives
When installing drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA
connector on the system board labeled SATA0. If you are adding a second hard drive, connect it
to the light blue connector on the system board labeled SATA1.
●
Connect a SATA optical drive to the white SATA connector on the system board labeled SATA2.
●
Connect an optional eSATA adapter cable to the black SATA connector on the system board
labeled ESATA.
●
Connect a media card reader USB cable to the USB connector on the system board labeled
MEDIA.
●
The power cable for the SATA drives is a three-headed cable that is plugged into the system board
with the first connector routed to the rear of the hard drive, the second connector routed to the rear
of the 3.5” drive, and the third connector routed to the rear of the 5.25” optical drive.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in
place. HP has provided extra guide screws for the drive bays (five 6-32 standard screws and four
M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32 standard
screws are required for a secondary hard drive. All other drives (except the primary hard drive)
Drives
117

HP Compaq Pro 6305 Specifications

General

Processor cache	1 MB
Processor cores	2
Processor model	A6-6400B
Processor family	AMD A6
Processor socket	Socket FM2
Processor frequency	3.9 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	4.1 GHz
Number of processors installed	1
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	1 x 4 GB
HDD size	3.5 \
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	500 GB
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 8470D
On-board graphics card family	AMD Radeon HD 8000
Recovery operating system	Windows 8 Pro
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI ports quantity	0
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Chassis type	Micro Tower
Product color	Black
Country of origin	China
Product type	PC
Motherboard chipset	AMD A75
Power supply	320 W
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	431 mm
Width	177 mm
Height	377 mm
Weight	9300 g
