Microtower (MT) Rear Panel Components

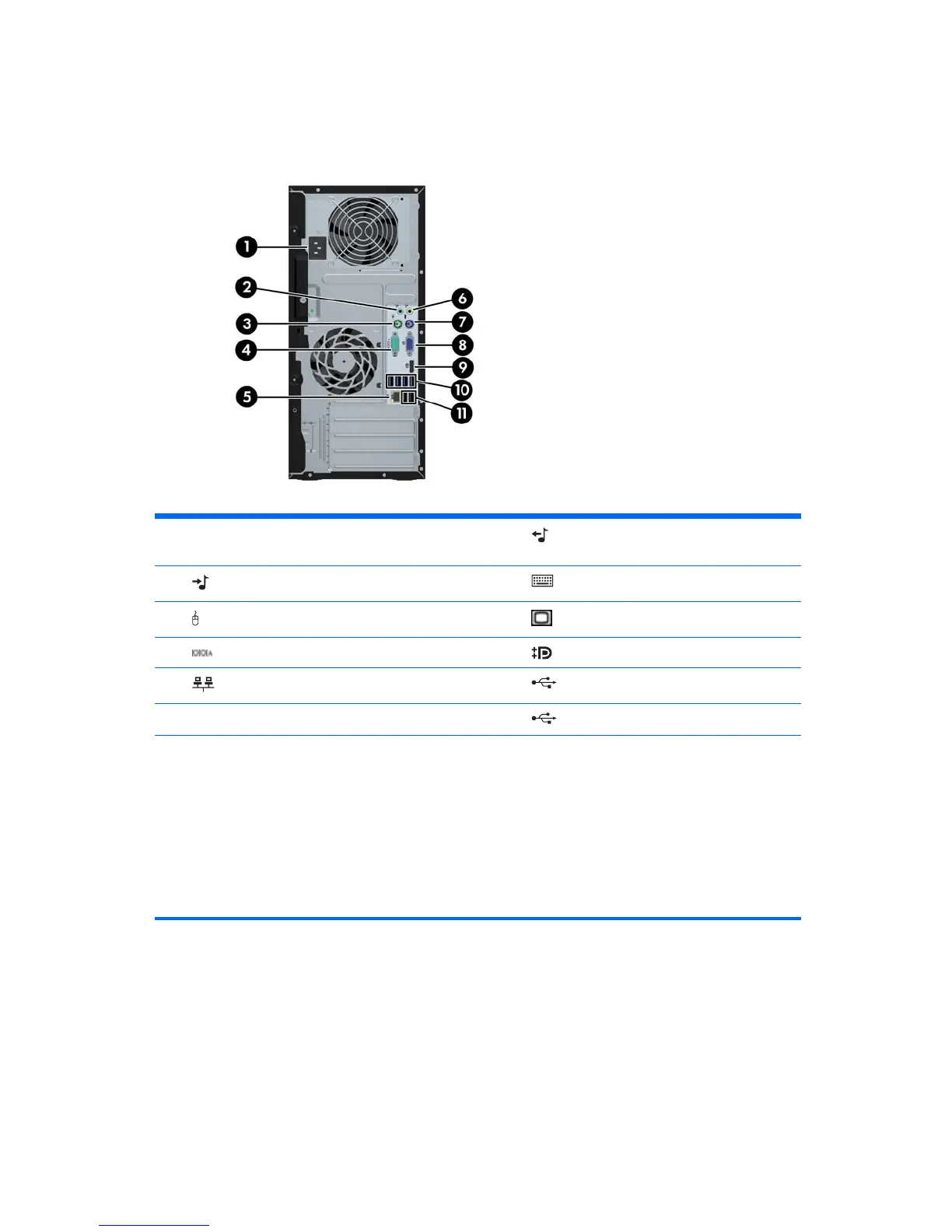

Figure 1-4 Rear Panel Components
Table 1-3 Rear Panel Components
1 Power Cord Connector 6 Line-Out Connector for powered audio
devices (green)
2
Line-In Audio Connector (blue) 7 PS/2 Keyboard Connector (purple)
3
PS/2 Mouse Connector (green) 8 VGA Monitor Connector
4
Serial Connector 9 DisplayPort Monitor Connector
5
RJ-45 Network Connector 10 USB 3.0 ports (blue)
11 USB 2.0 ports (black)
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time in the Realtek HD
Audio Manager.
For AMD/ATI graphic cards installed in one of the system board slots, the video connectors on the graphics card and
the integrated graphics on the system board may be used at the same time. However, for other non-AMD/ATI
graphics cards, the video connectors will only be functional on the graphics card.
If inserting a wireless receiver, use a USB 2.0 port that is separated from USB 3.0 devices.
4 Chapter 1 Product Features
