7. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the
back of the drive.
NOTE: The power cable for the optical drives is a two-headed cable that is routed from the
system board to the rear of the optical drive bays.

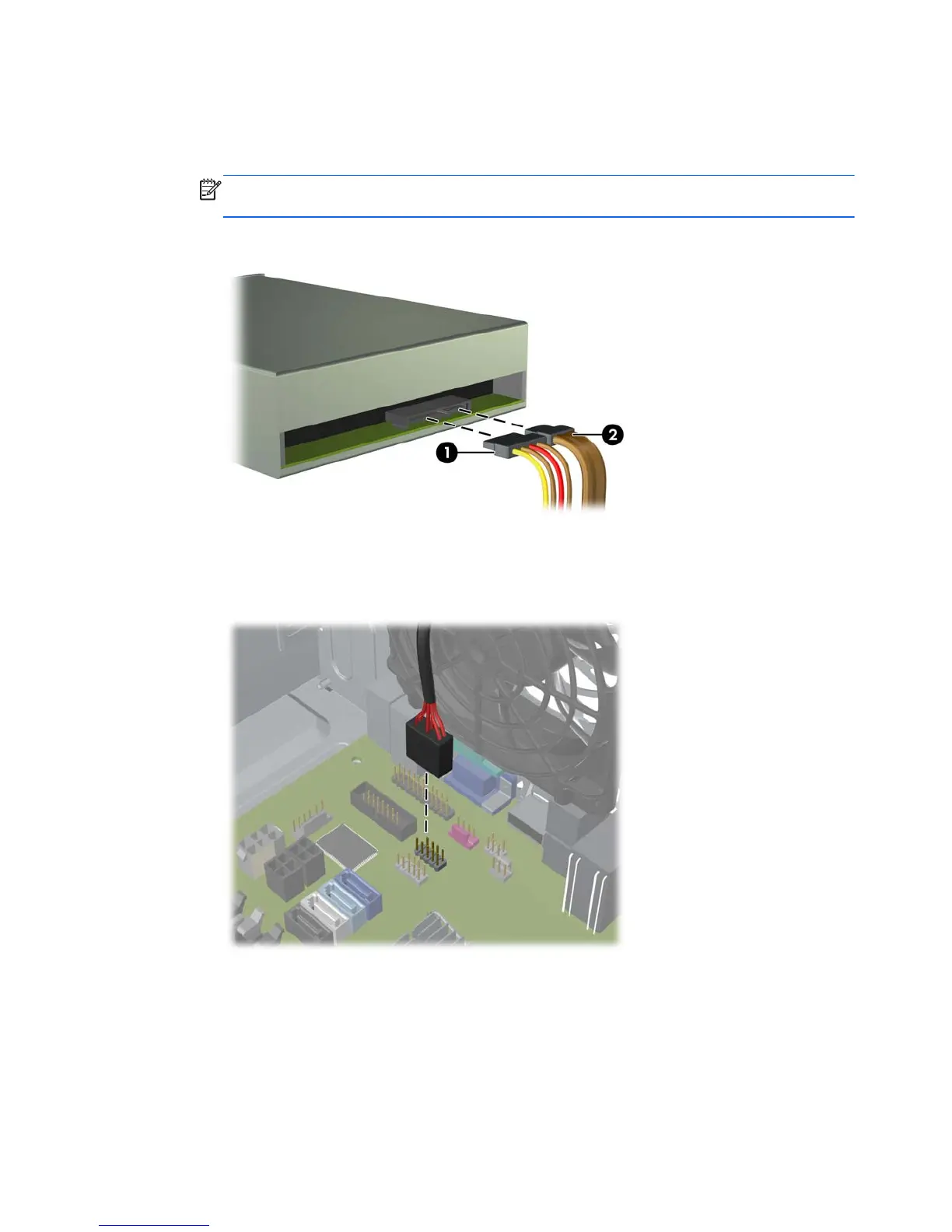

Figure 6-20 Connecting the Optical Drive Cables
b. If your are installing a media card reader, connect the USB cable to the USB system board
connector labeled MEDIA.
Figure 6-21 Connecting the Media Card Reader USB Cable
76 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
