Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket
screws through the sides of the bracket into the drive.

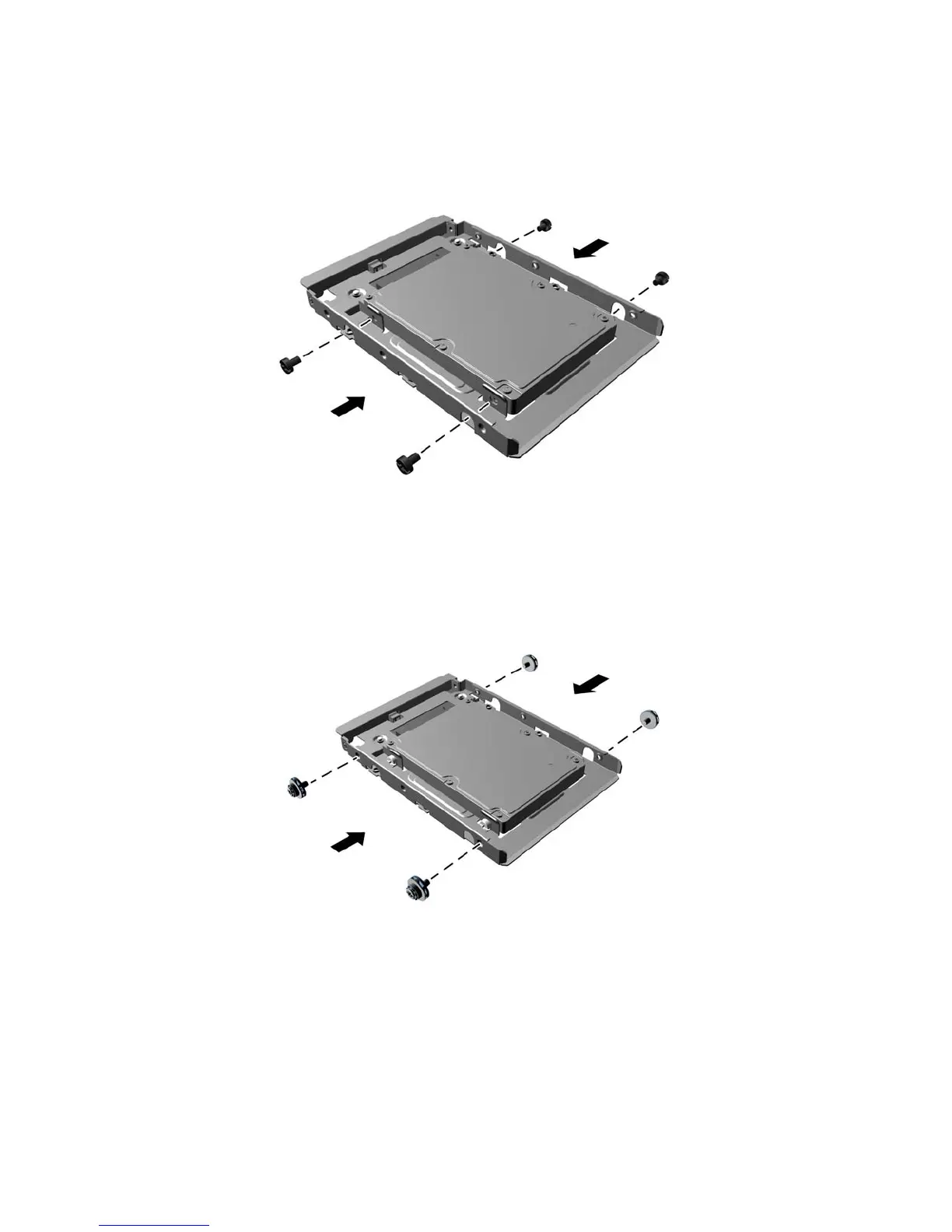

Figure 6-25 Securing the Drive in the Adapter Bracket
◦
Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket
(two on each side of the bracket).
Figure 6-26 Installing Isolation Mounting Guide Screws in the Adapter Bracket
