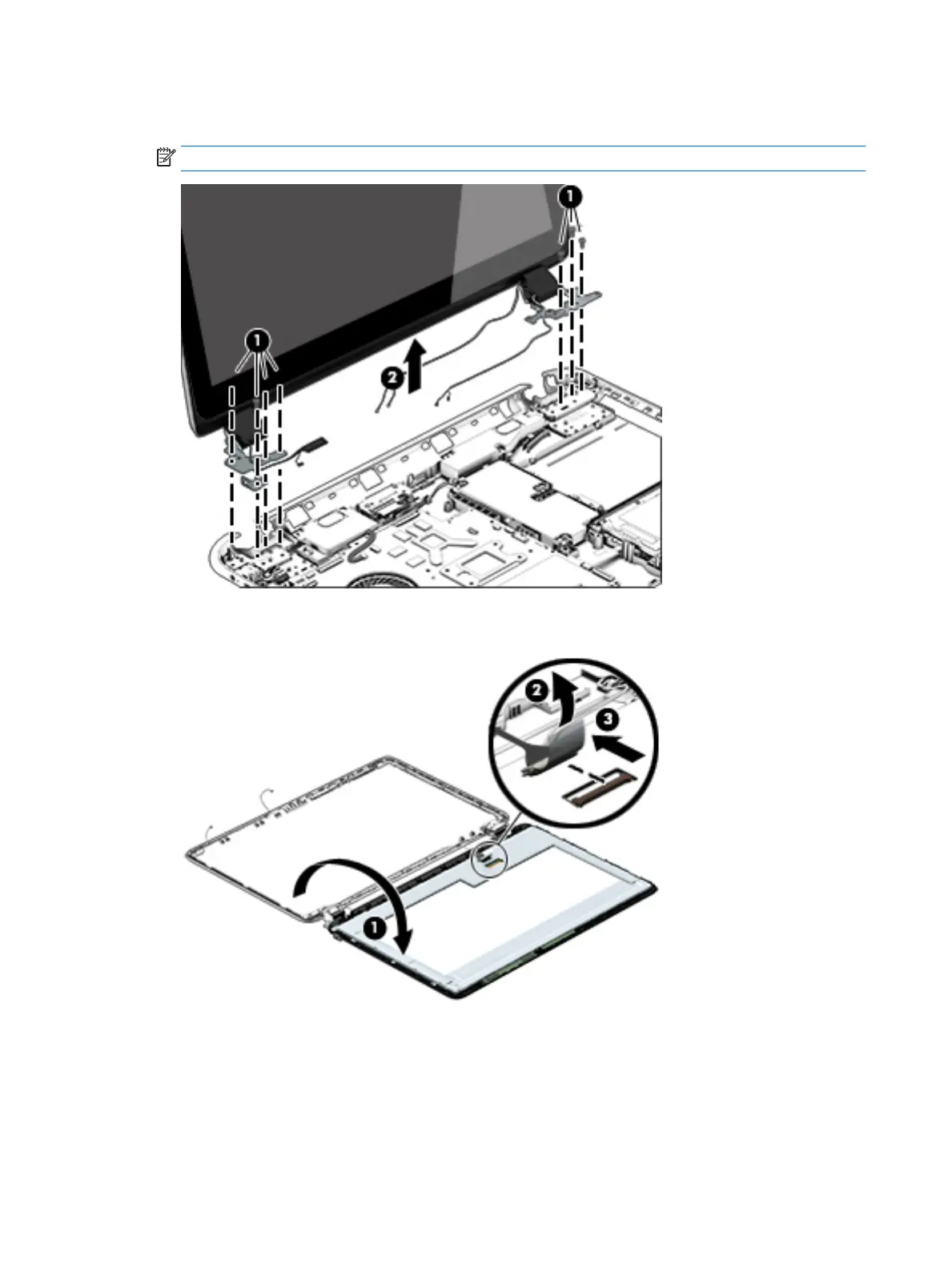

5. Remove the seven Phillips screws (1) on the left and right side base of the display panel and lift the
panel up (2).
NOTE: Support the display panel as you are removing the screws.
6. Open the panel cover (1), swivel the display panel hinges (2) on both sides and then tilt up the display
panel hinge (3) to release it.
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
