2. Remove the eleven Phillips M2.0 × 3.5 screws (1) that secure the system board to the computer.
3. Rotate the left side of the system board upward (1), and then pull the system board away from the
connectors on the side of the chassis to remove it from the computer (2).
Reverse this procedure to install the system board.
IR board cable

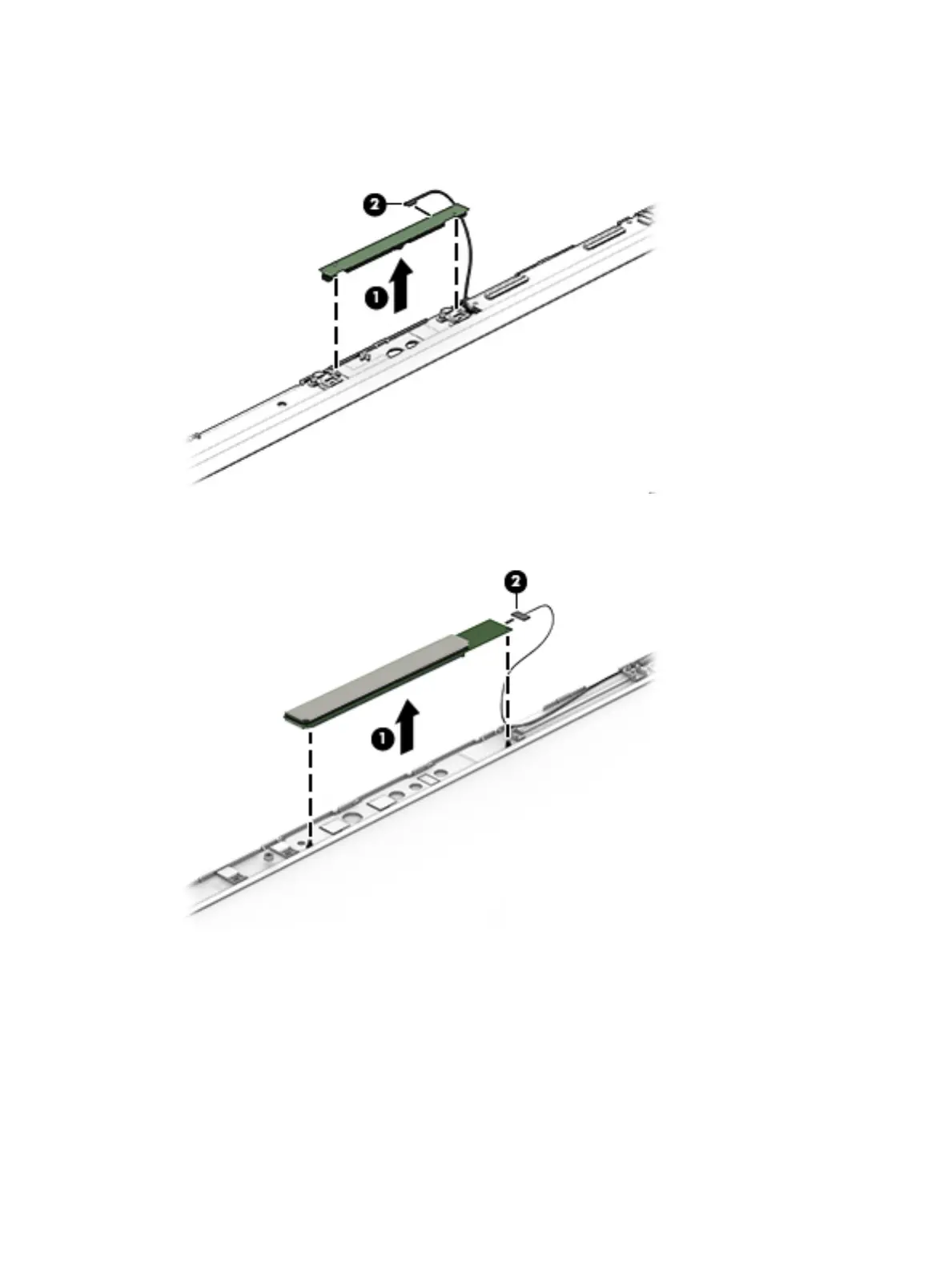

To remove the IR board cable, use this procedure and illustration.
