Reverse this procedure to install the heat sink.
Display assembly panel
To remove the display panel from the bottom cover, use this procedure and illustration.
Table 5-9 Display assembly panel description and part number
Description Spare part number
43.9 (17.3), Ultra high denition (UHD) (3840 × 2160), antiglare, low blue light, UWVA DCI-P3. 400 nits, eDP
1.4 + PSR2, 60Hz
N13555-001
43.9 (17.3) FHD (1920x1080), antiglare, UWVA, sRGB, 300 nits, eDP 1.2 without PSR, DBCG, at Panel N13554-001
43.9 (17.3), Full high denition (FHD) (1920x1080), antiglare, UWVA, sRGB, 300 nits, eDP 1.2 without PSR,
touch screen, at panel, DBTS
N13553-001
Before removing thedisplay assembly panel, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 33)).
2. Remove the bottom cover (see Bottom cover on page 33).
3. Remove the battery (see Battery on page 34).
Remove the display assembly panel:

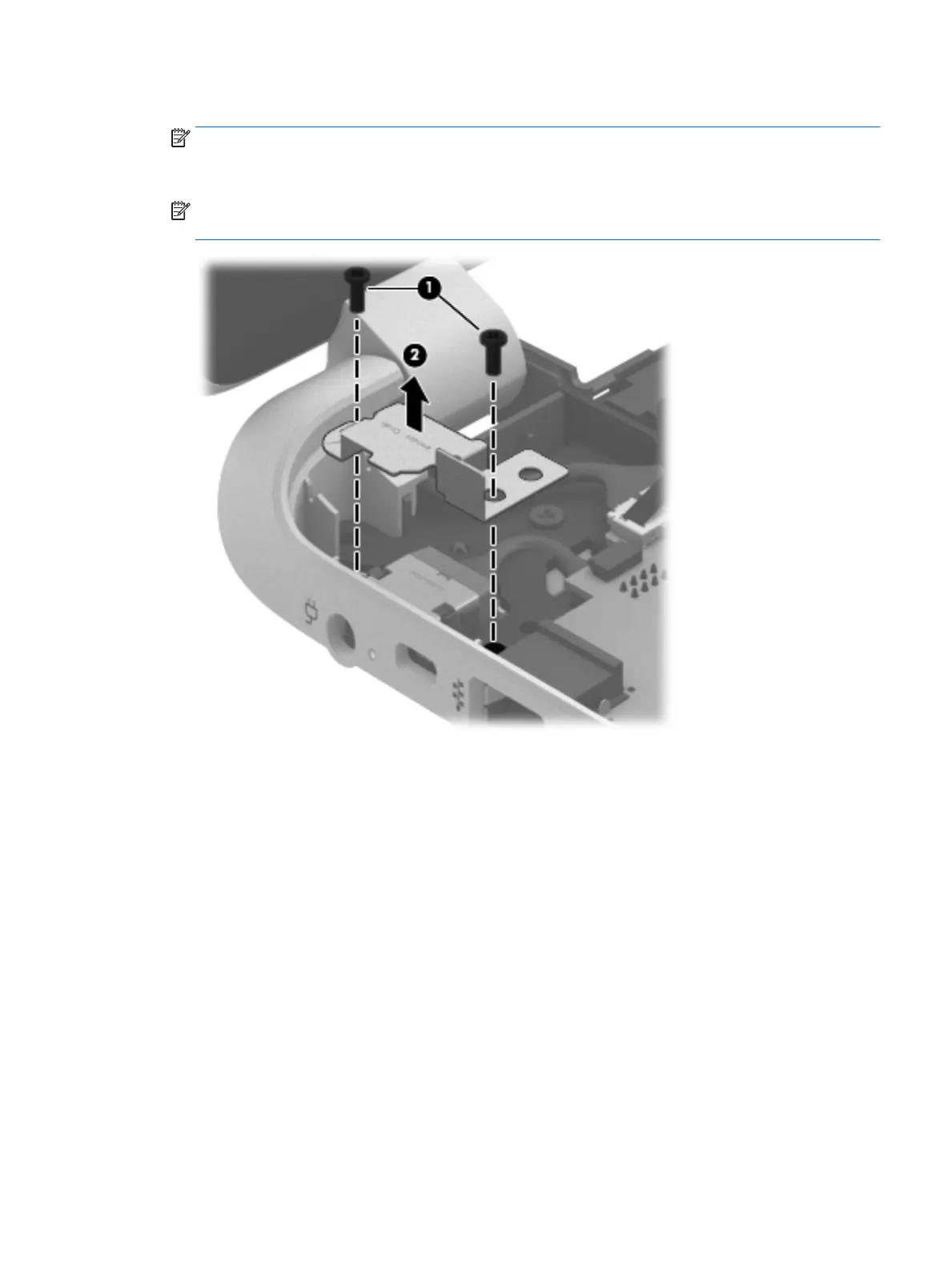

1. Remove the WLAN transparent cover (1), and then carefully disconnect the two antenna cables from the
WLAN module (2).
NOTE: Computer models have either one or two WLAN antennas. On models with two antennas, the #1
white WLAN antenna cable connects to the WLAN module #1 Main terminal. The #2 black WLAN antenna
cable connects to the WLAN module #1 Aux terminal.
2. Disconnect the camera module cable (3) from the system board.
3. Disconnect the display panel cable (4) from the system board.
Display assembly panel
