HP dc5100 - Microtower PC Service & Reference Guide

Service Reference Guide, dc5100 376220-001 6–23
Removal and Replacement Procedures— Microtower (MT) Chassis
6.13 Power Switch Assembly
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Remove the front I/O panel assembly (Section 6.11, “Front I/O Panel Housing Assembly”).

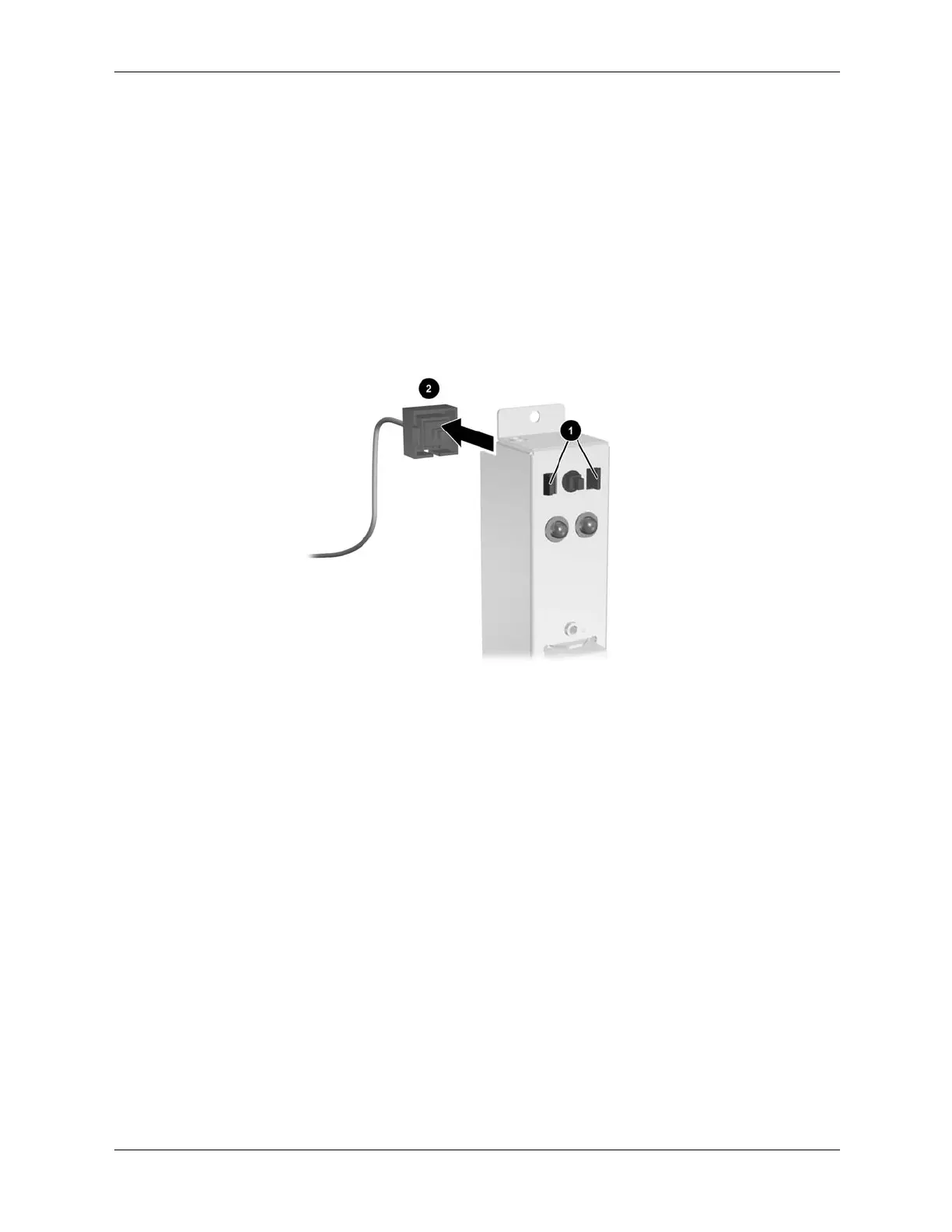

4. Squeeze the switch holder retaining clips together and push the switch assembly out of the
front I/O panel housing.
5. Place the switch holder with switch installed into the inside of the front I/O panel housing
and position the legs of the retaining clip into the clip slots. Press firmly so that the clips will
penetrate the slot openings and latch into place. If one clip will not easily engage, it may be
necessary to use the end of a ball point pen (or another thin, stiff object) to compress the clip
leg while inserting it into the clip slot.
6. Reconnect the housing assembly to the front of the chassis and reconnect the cables to the
system board.

HP dc5100 - Microtower PC Specifications

General

Processor	Intel Pentium 4 or Intel Celeron D
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Optical Drive	DVD-ROM, CD-RW, or DVD+/-RW
Graphics	Intel Graphics Media Accelerator 900
Audio	Integrated audio
Expansion Slots	1 PCI Express x16, 3 PCI
Ports	1 Serial, 1 Parallel
Weight	Approx. 22 lbs (10 kg)
Processor Speed	Up to 3.8 GHz
Storage	40 GB to 250 GB HDD
