6–34 376220-001 Service Reference Guide, dc5100
Removal and Replacement Procedures— Microtower (MT) Chassis

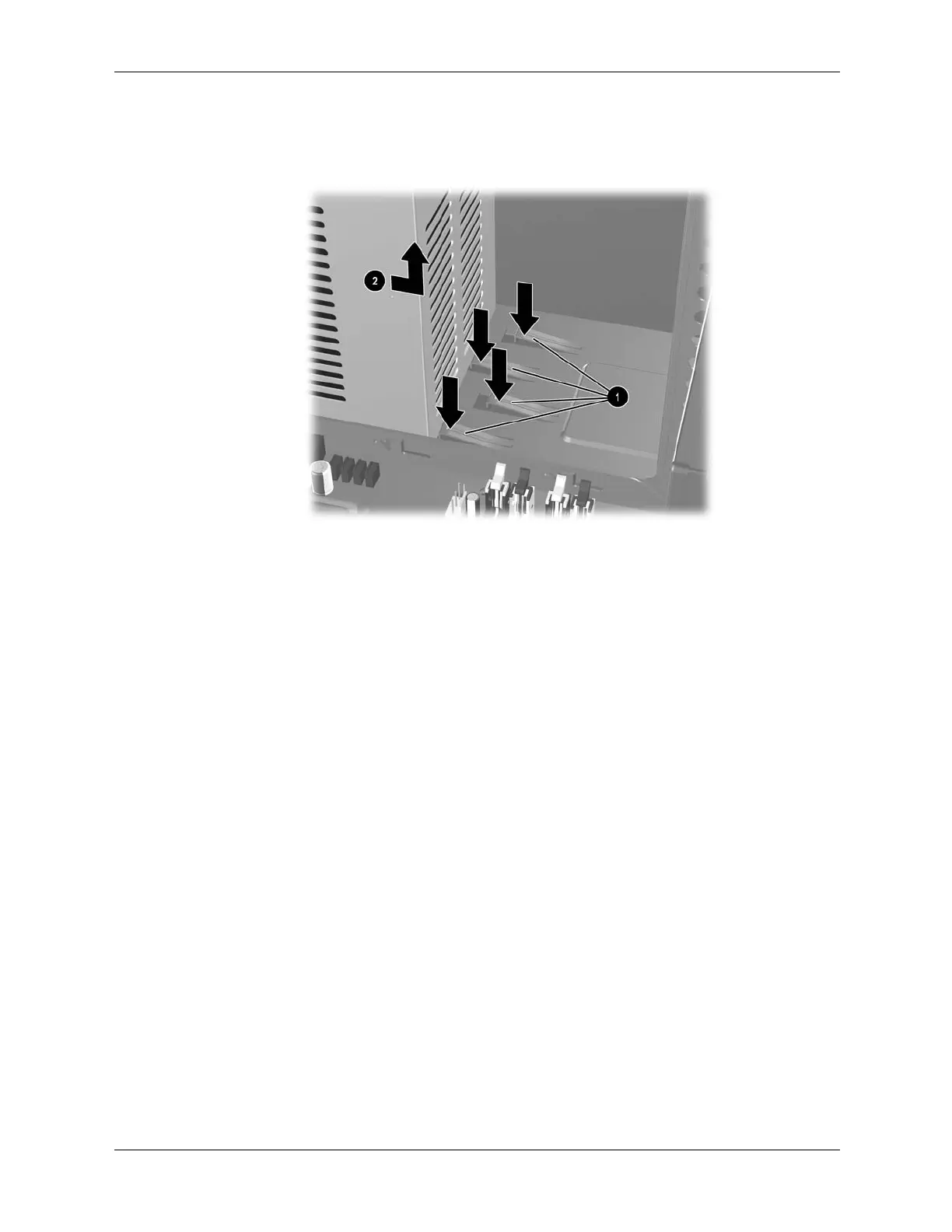

5. Pull the power supply towards the front of the chassis while depressing the two sets of
retaining clips 1 to allow the power supply to move far enough to lift it from the chassis 2.
To install the power supply, reverse the removal procedure.
