HP dc5100 - Microtower PC Service & Reference Guide

Service Reference Guide, dc5100 376220-001 6–5
Removal and Replacement Procedures— Microtower (MT) Chassis

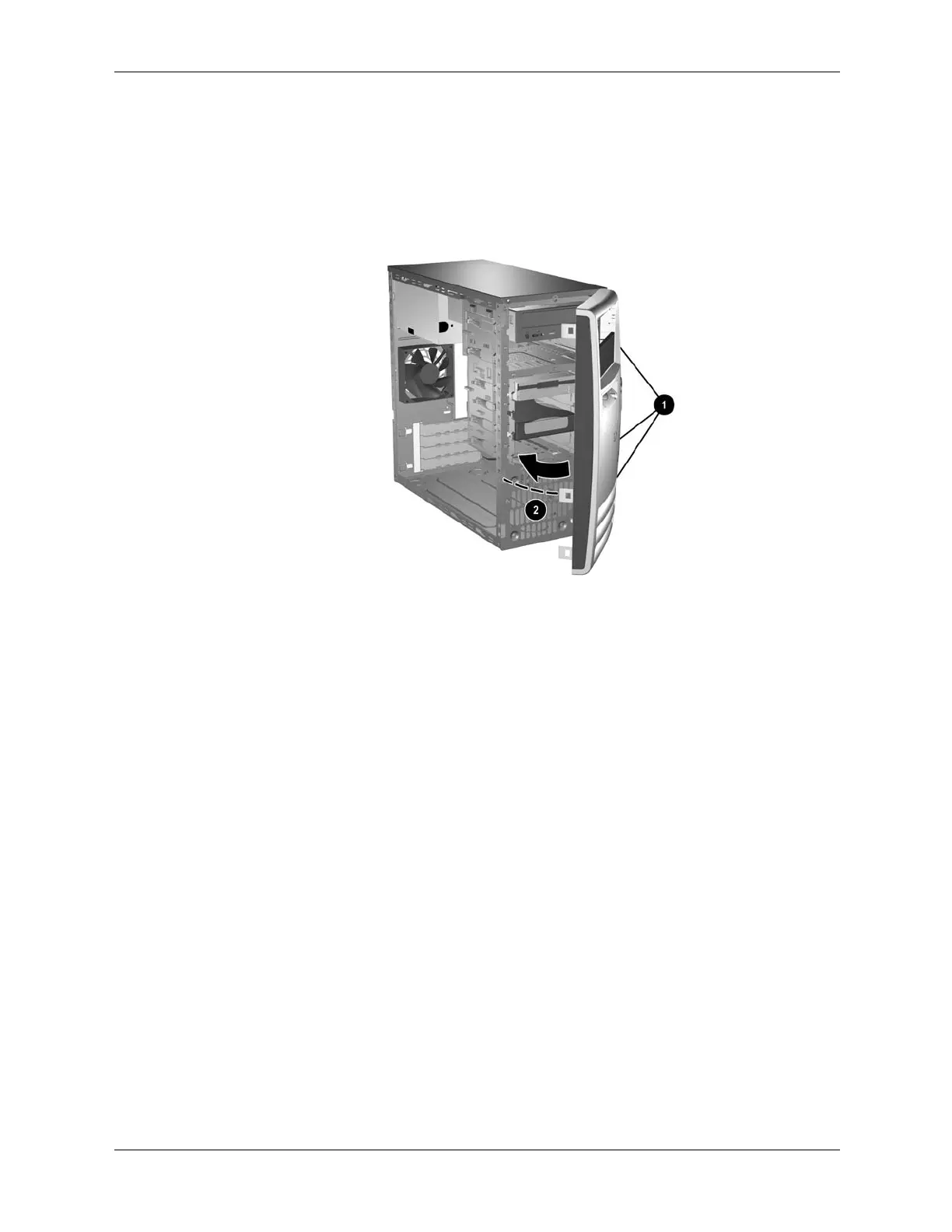

To reinstall the front bezel,
1. Position the chassis in the upright position.
2. Insert the two hooks on the right side of the bezel 1 into the rectangular holes on the chassis
then rotate the bezel into place 2 so that the three tabs on the left side of the bezel and the
single tab on the upper right corner of the bezel snap into the slots on the chassis.

HP dc5100 - Microtower PC Specifications

General

Processor	Intel Pentium 4 or Intel Celeron D
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Optical Drive	DVD-ROM, CD-RW, or DVD+/-RW
Graphics	Intel Graphics Media Accelerator 900
Audio	Integrated audio
Expansion Slots	1 PCI Express x16, 3 PCI
Ports	1 Serial, 1 Parallel
Weight	Approx. 22 lbs (10 kg)
Processor Speed	Up to 3.8 GHz
Storage	40 GB to 250 GB HDD
