Service Reference Guide, dx2200 MT 415606-001 6–3
Removal and Replacement Procedures— Microtower (MT) Chassis
6.3 Front Bezel
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2, “Access Panel”).

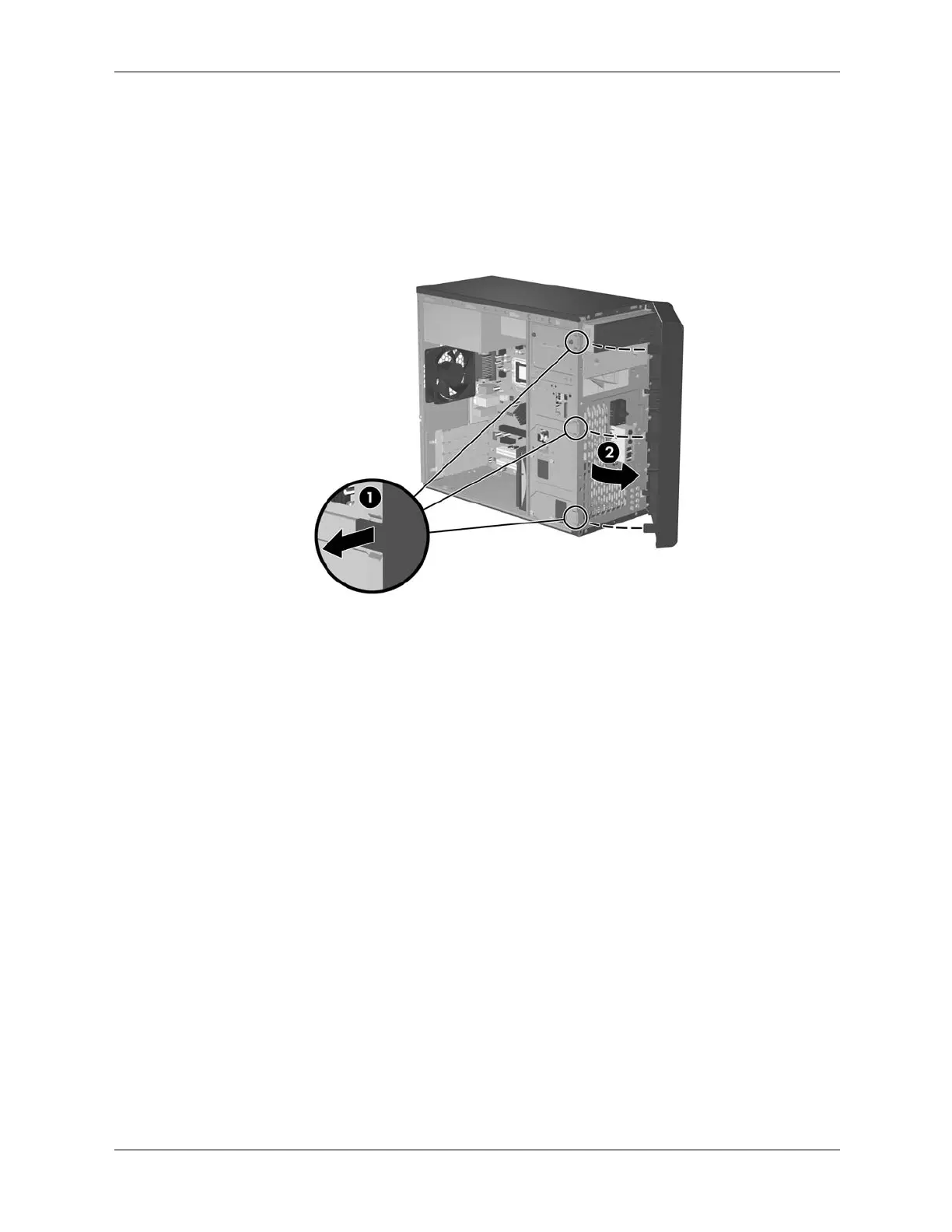

3. Pull outward on all three tabs on the left side of the bezel 1 then rotate the bezel off the
chassis 2, beginning with the left side then the right side.
To reinstall the front bezel, reverse the removal procedure.
