Service Reference Guide, dx2200 MT 415606-001 6–13
Removal and Replacement Procedures— Microtower (MT) Chassis
6.8.2 5.25" Drive
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2, “Access Panel”).
3. Remove the front bezel (Section 6.3, “Front Bezel”).
4. Disconnect the power, data, and audio cables, as necessary, from the back of the drive.

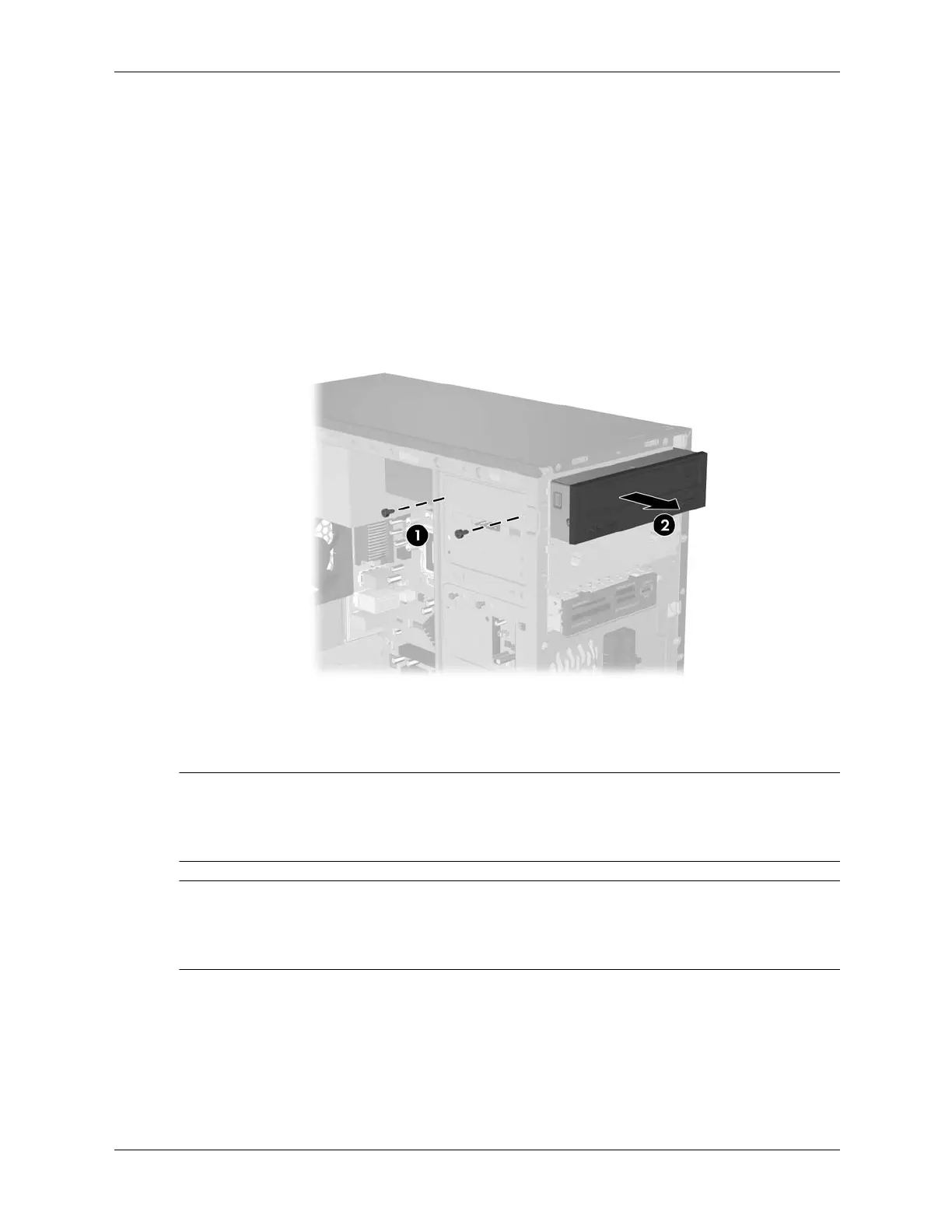

5. Remove the two retainer screws that secure the drive in the drive cage 1.
6. Slide the drive forward out of the drive cage, as shown in the illustration below 2.
7. After the drive has been removed from the chassis, remove the two guide screws from the
right side of the drive. These screws should be transferred to the new drive.
To install a drive, reverse the removal procedure.
✎
If you are installing a 5.25" drive for the first time into bay 2 you must first remove the metal
shield that covers the bay by pressing in on the silver-colored tab on the left side of the chassis
then pulling the shield out from the front of the chassis. It is not necessary to remove the drive
from bay 1 when performing this operation.
✎
There are a total of eight extra guide/retainer screws on the front of the chassis behind the bezel.
Four have Unified Standard (U.S.) #6-32 standard threads and four have M3 metric threads. U.S.
screws are used for hard drives and have a silver finish. Metric screws are used for all other drives
and have a black finish. Be sure to install the appropriate guide screws into the drive.
